Installing System Components 93
6
Holding the card by its edges, position the card so that the card-edge
connector aligns with the expansion-card connector on the expansion-card
riser.
7
Insert the card-edge connector firmly into the expansion-card connector
until the card is fully seated.
8
Close the expansion-card latch. See Figure 3-13.

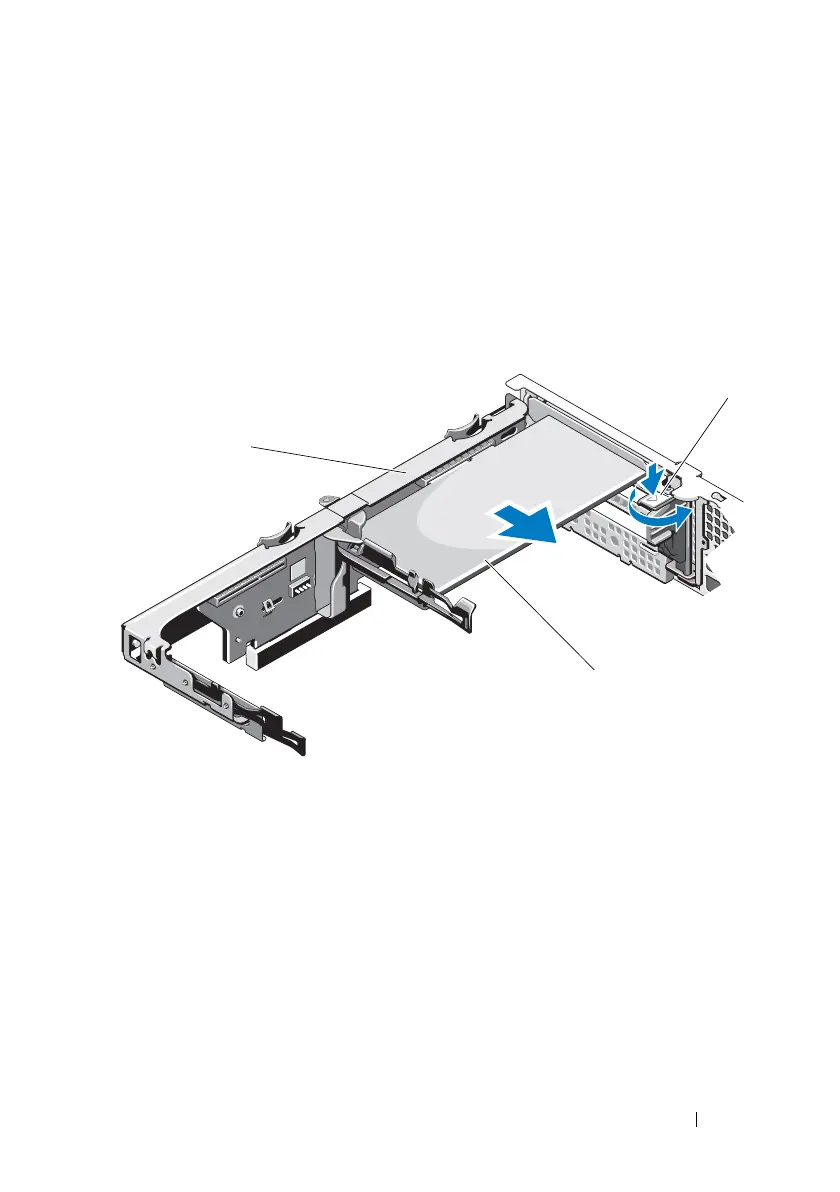

Figure 3-13. Installing or Removing an Expansion Card
9
Connect any cables to the expansion card.
1 expansion-card riser 2 expansion-card latch
3 expansion card
