Installing the processor
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task

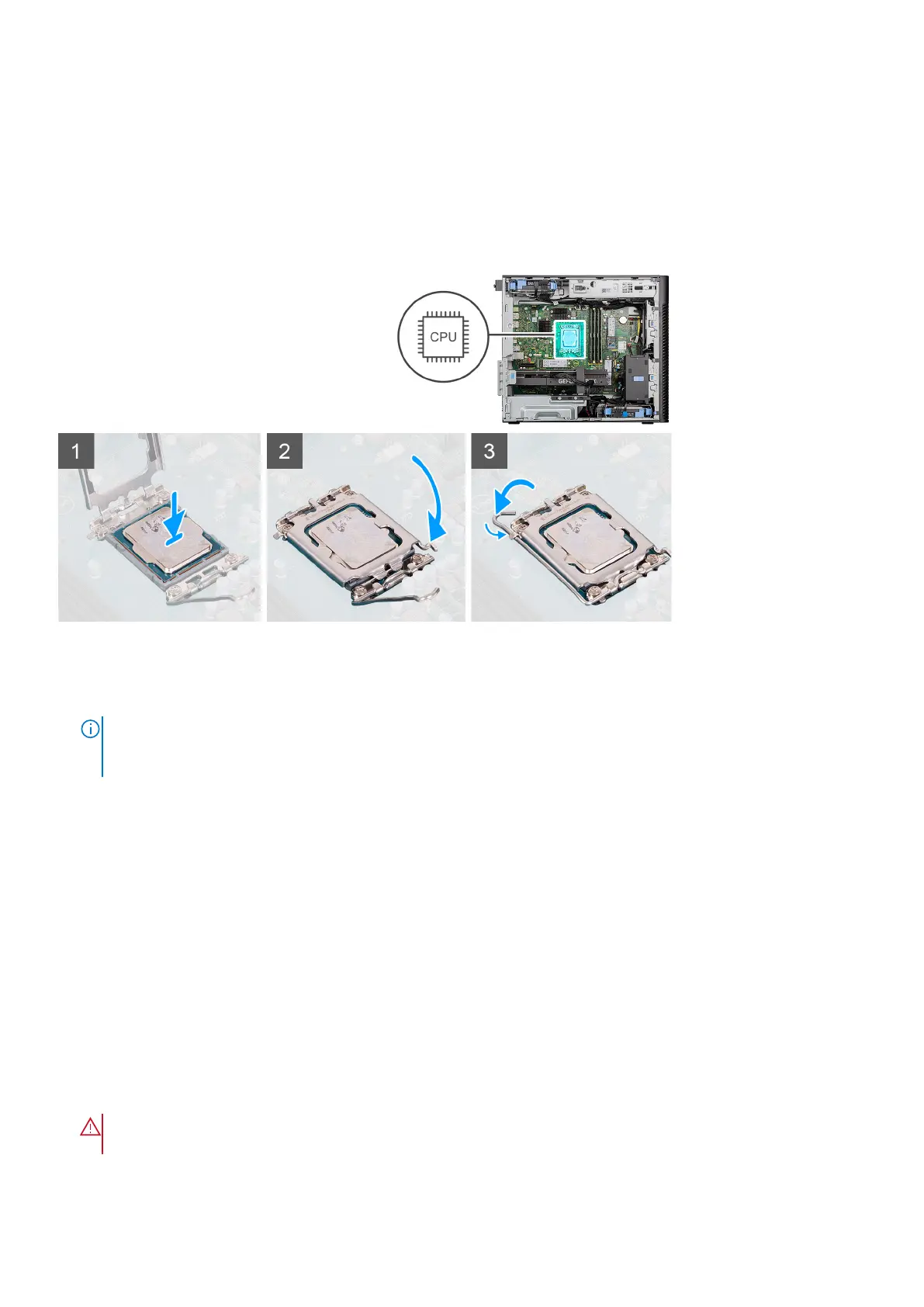

The following images indicate the location of the processor and provides a visual representation of the installation procedure.
Steps
1. Ensure that the release lever on the processor socket is fully extended in the open position.
2. Align the notches on the processor with the tabs on the processor socket and place the processor in the processor socket.
NOTE:
The pin-1 corner of the processor has a triangle that aligns with the triangle on the pin-1 corner on the processor
socket. When the processor is properly seated, all four corners are aligned at the same height. If one or more corners of
the processor are higher than the others, the processor is not seated properly.
3. When the processor is fully seated in the socket, pivot the release-lever down and place it under the tab on the processor
cover.
Next steps
1. Install the processor fan and 125 W heat-sink assembly or processor fan and heat-sink assembly.
2. Install the side cover.
3. Follow the procedure in after working inside your computer.
Voltage-regulator heat sink
Removing the VR heat sink
Prerequisites
1. Follow the procedure in before working inside your computer.
WARNING:
The heat sink may become hot during normal operation. Allow sufficient time for the heat sink to
cool before you touch it.
Removing and installing components 59
