Steps

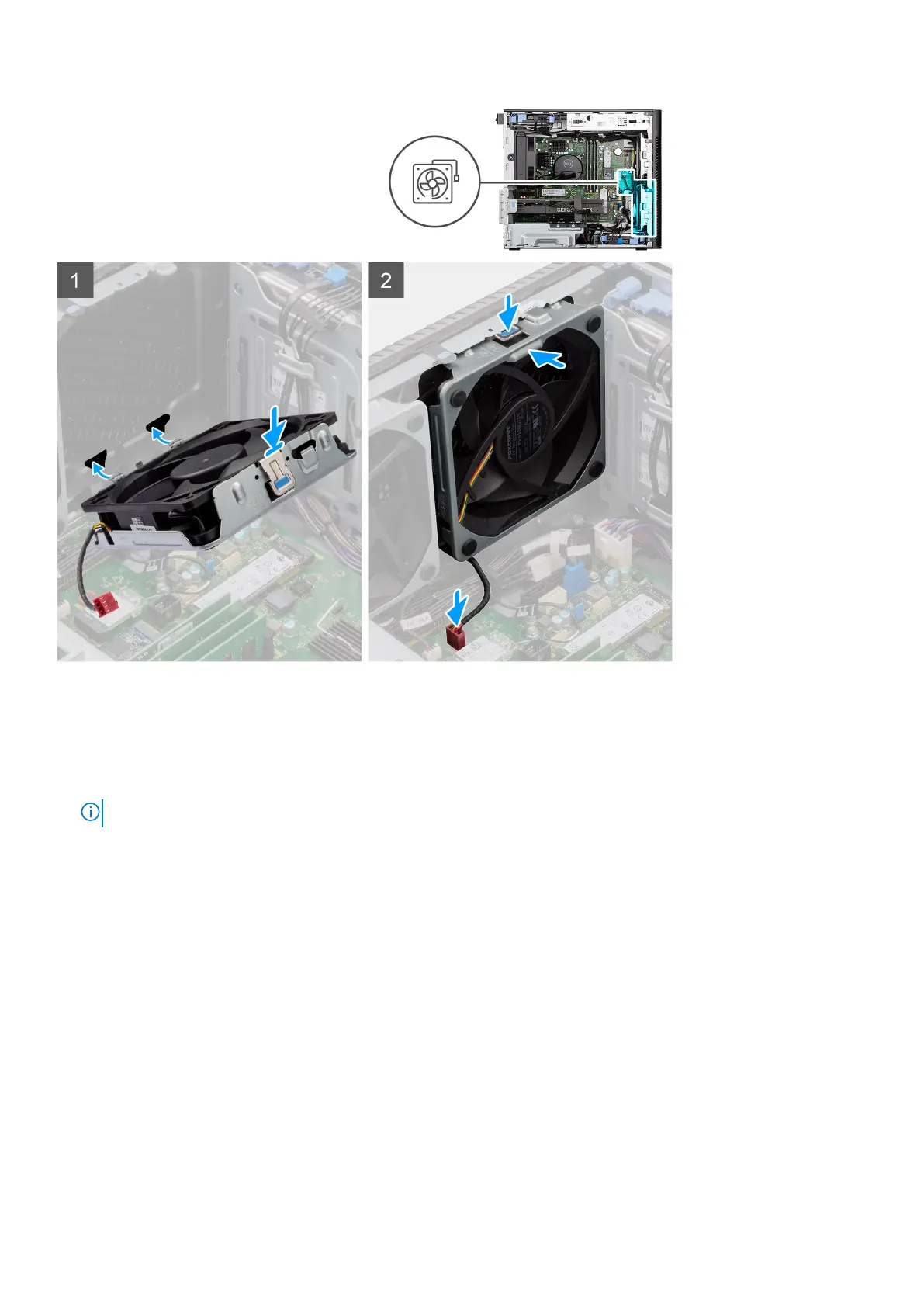

1. Align the tabs on the fan with the slots on the chassis.
2. Insert the chassis fan at an angle into the slot in the chassis.
3. Press the chassis fan into the slot until the release tab locks into place.
4. Connect the fan cable to the connector on the system board.
NOTE: Follow the procedure if your computer is installed with two front fans.
Next steps
1. Install the side cover.
2. Follow the procedure in after working inside your computer.
Removing the rear fan
Prerequisites
1. Follow the procedure in before working inside your computer.
2. Remove the side cover.
About this task
The following images indicate the location of the chassis fan and provide a visual representation of the removal procedure.
