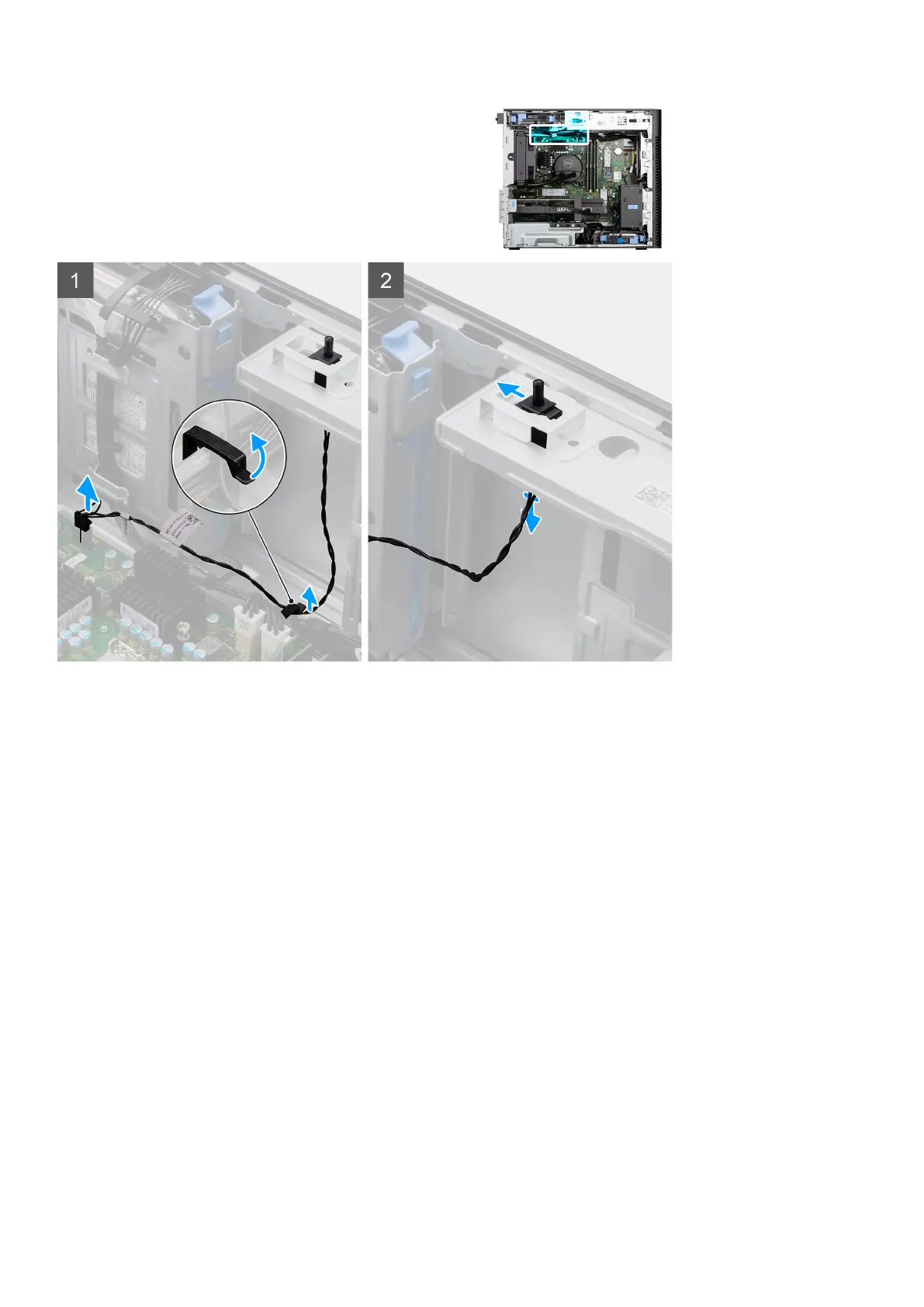

Steps
1. Disconnect the intruder cable from the connector on the system board and unroute the cable from the routing guide.
2. Slide and remove the intrusion switch from the chassis.
Installing the intrusion switch
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following images indicates the location of the intrusion switch and provides a visual representation of the installation
procedure.
70
Removing and installing components
