Steps
1. Carefully peel off the tweeter speaker from its compartment next to the fan connector to create more space to disconnect
the fan cable.
2. Disconnect the left fan cable from the system board.
3. Remove the two (M2x4) screws that secure the left fan to the palm-rest and keyboard assembly.
4. Lift the fan from its outer edge and slide it away from the palm-rest and keyboard assembly.
Installing the left fan
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task

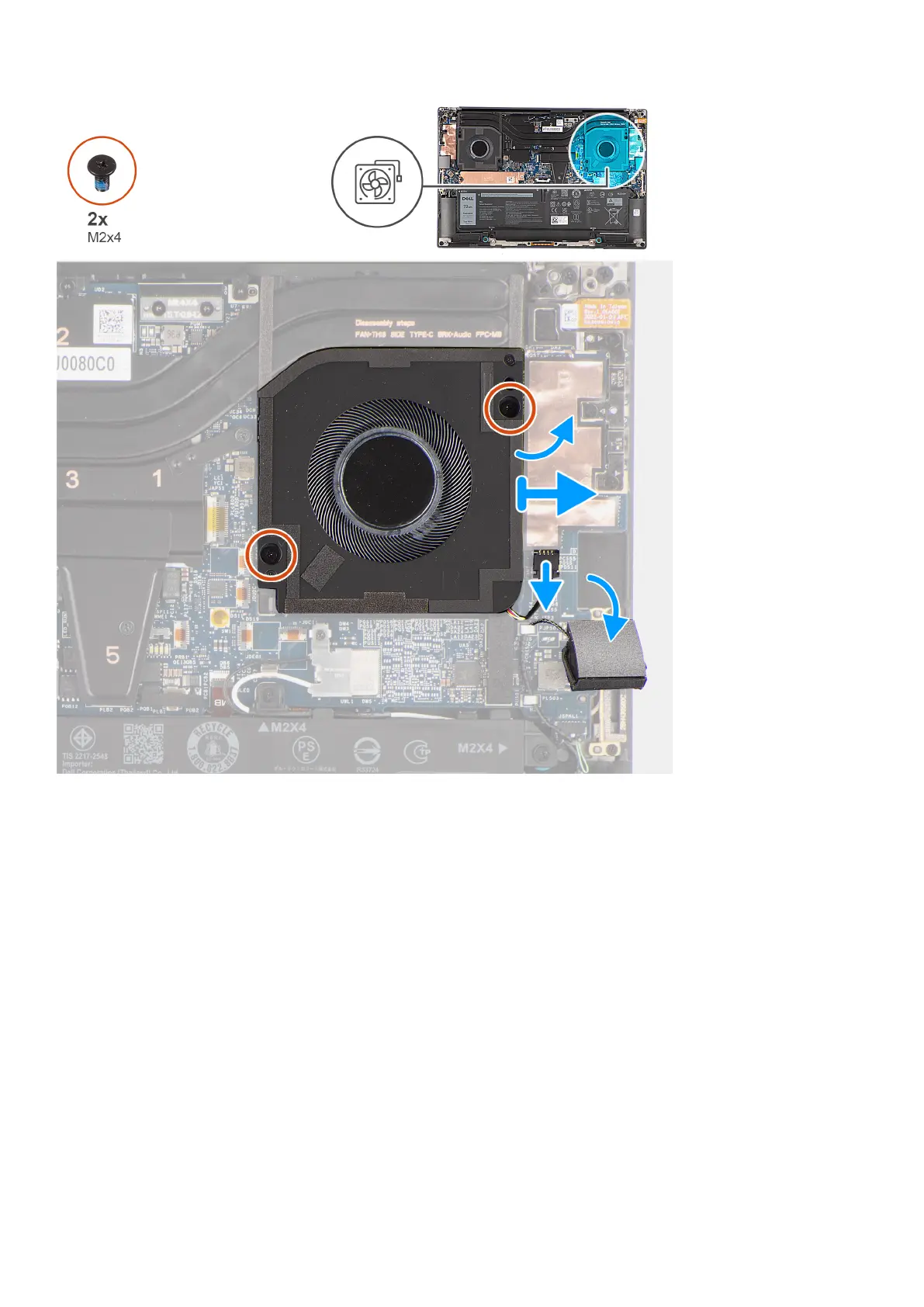

The following images indicate the location of the left fan and provide a visual representation of the installation procedure.
Removing and installing components
25
