3. Install the:
a. battery cover
b. SD card
4. Follow the procedure in After working inside your computer.
Keyboard
Removing the keyboard
1. Follow the procedures in Before working inside your computer.

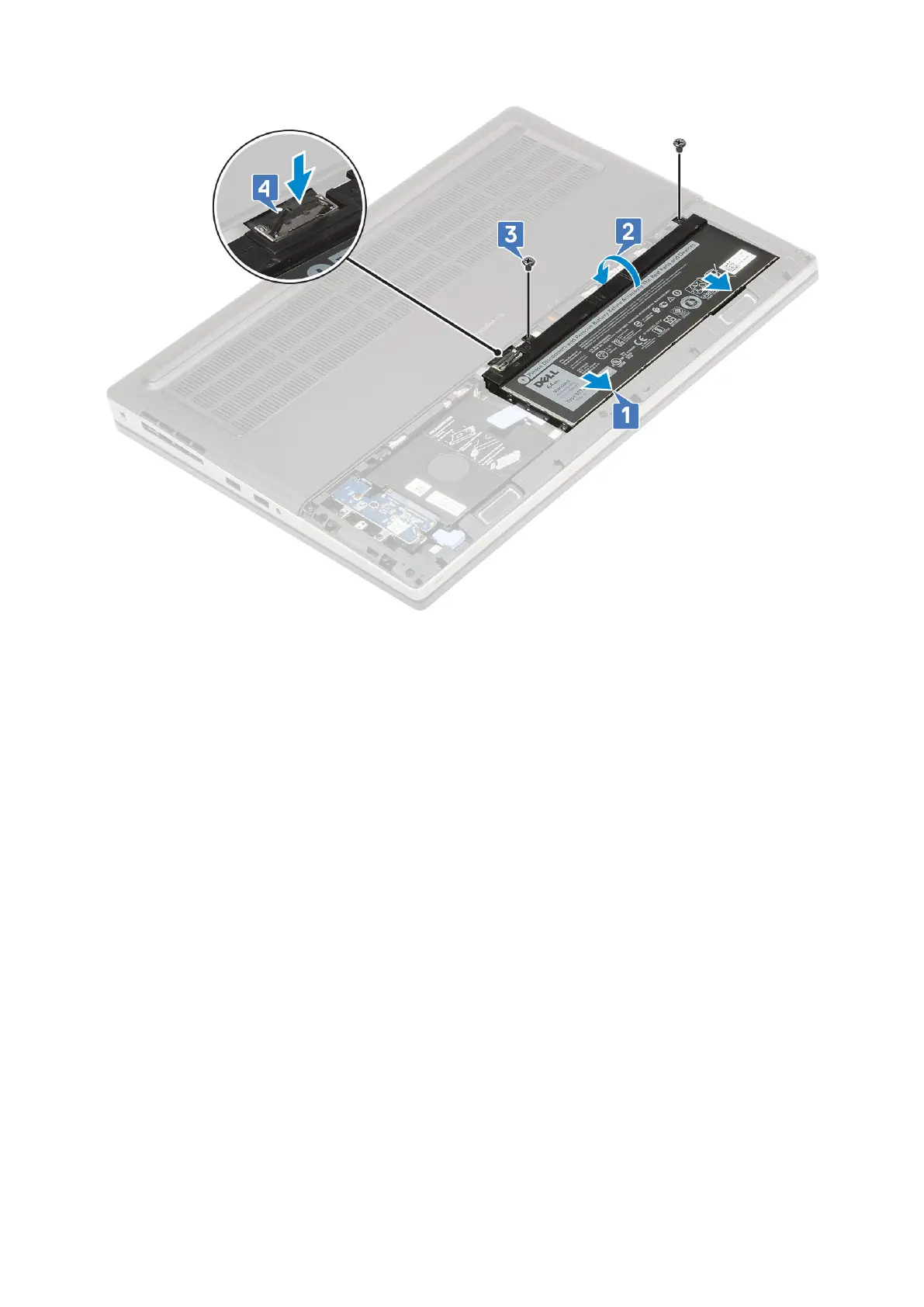

2. Remove the:
a. SD card
b. battery cover
c. battery
3. To remove the keyboard:
a. Lift the latch and disconnect the keyboard cable, fingerprint cable and the fingerprint button cable from the connectors
on the system board.
Removing and installing components
23
