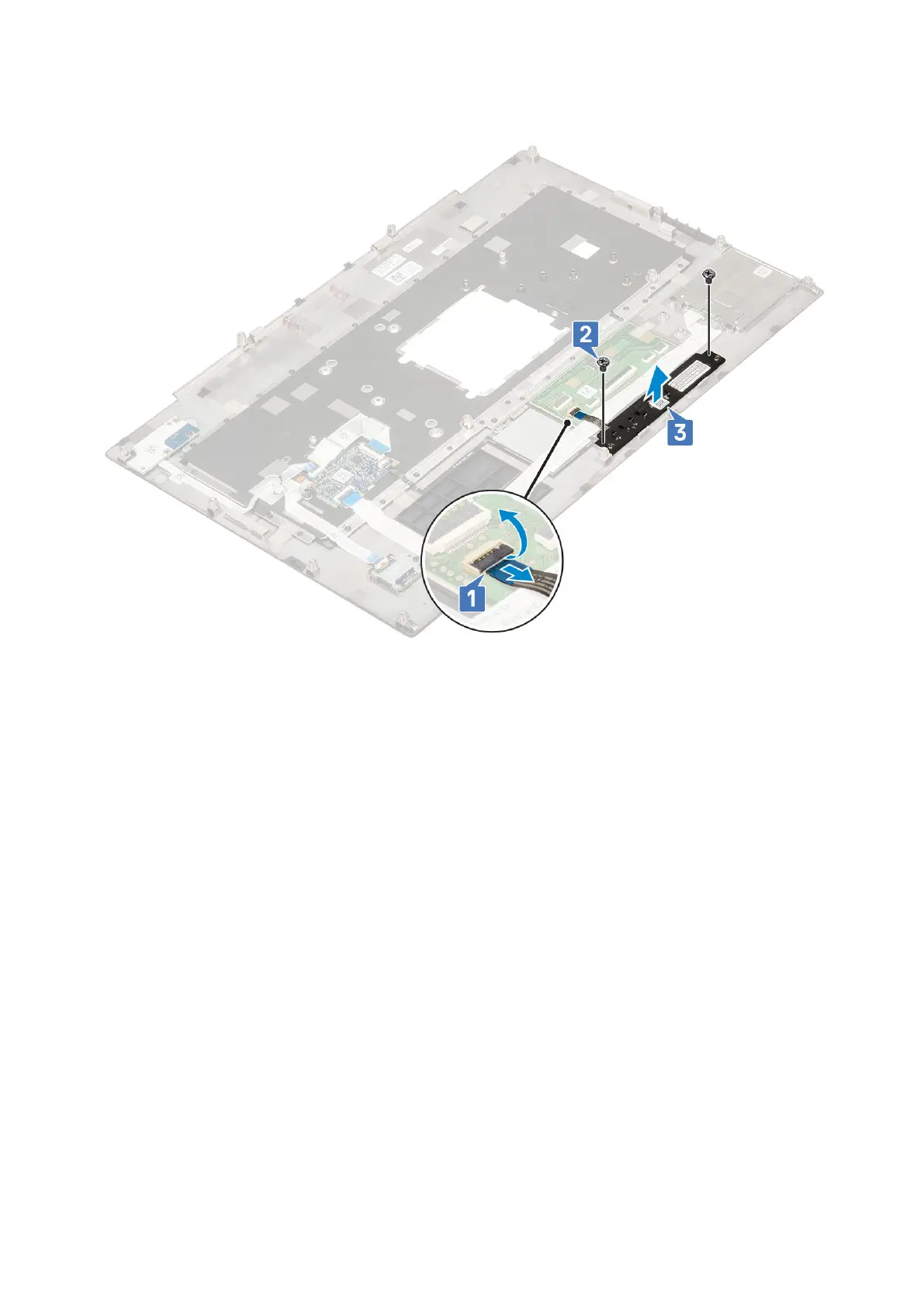

b. Remove the 2 (M2.0x3.0) screws that secure the touchpad buttons to the palmrest [2].
c. Remove the touchpad button from the palmrest [3].
Installing the Touchpad button
1. To install the touchpad button:
a. Place the touchpad button into its slot in the palmrest [1].
b. Replace the 2 (M2.0x3.0) screws to secure the touchpad button to the palmrest [2].
c. Connect the touchpad button cable to the connector in the touchpad [3].
Removing and installing components
63
