2. Install the:
a. base cover
b. battery
c. battery cover
d. SD card
3. Follow the procedure in After working inside your computer.
Power connector port
Removing the power connector port
1. Follow the procedure in Before working inside your computer.
2. Remove the:
a. SD card
b. battery cover
c. battery
d. base cover

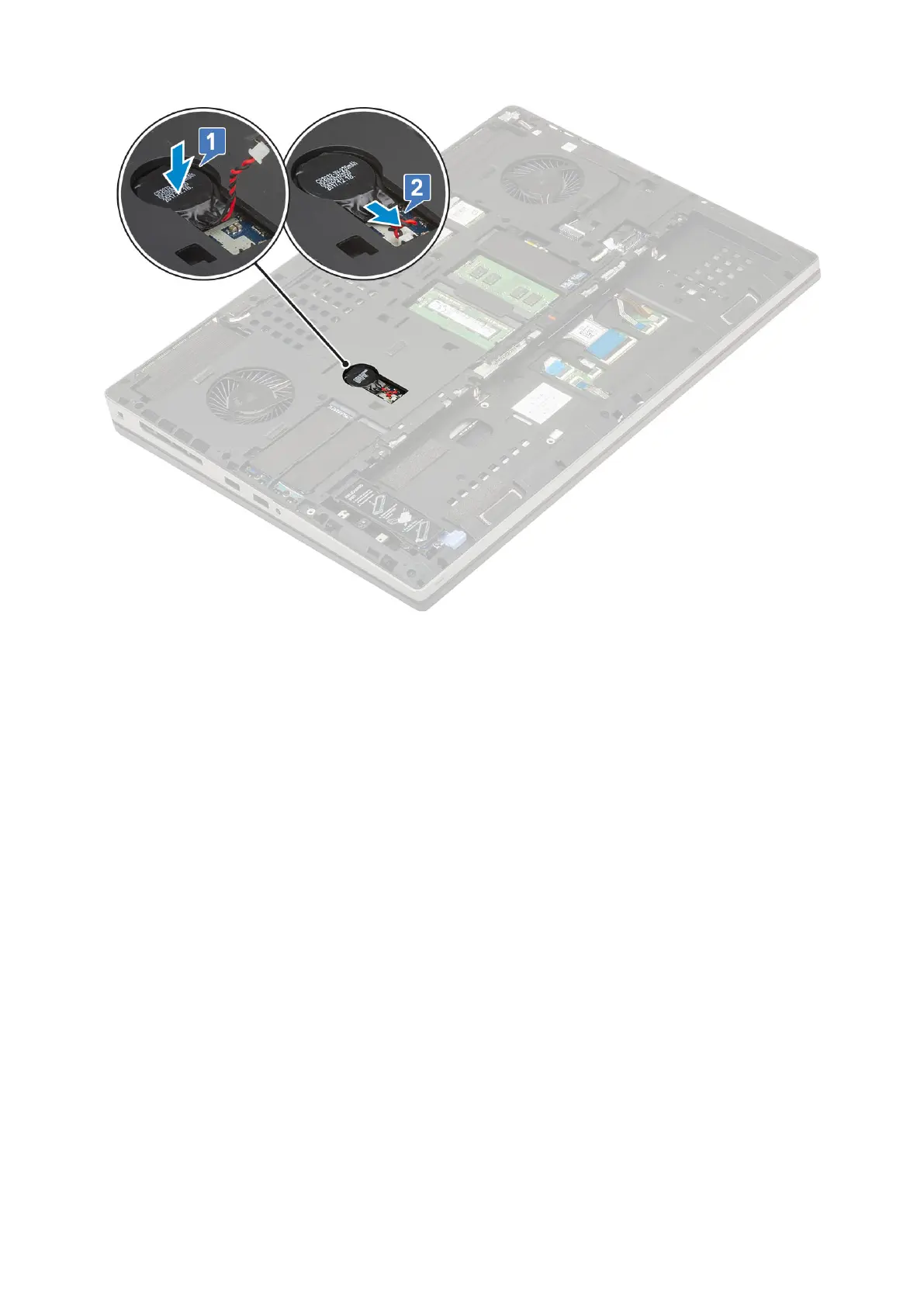

3. To remove power connector port:
a. Disconnect the power connector cable from the connector on the system board [1].
b. Peel the adhesive tape that secures the power connector cable to the system and unroute the cable [2, 3].
Removing and installing components
53
