Dell Precision 7740 - Installing the Edp Cable

g. WWAN card
h. WLAN card
i. palmrest
j. display assembly
k. display bezel
l. display panel

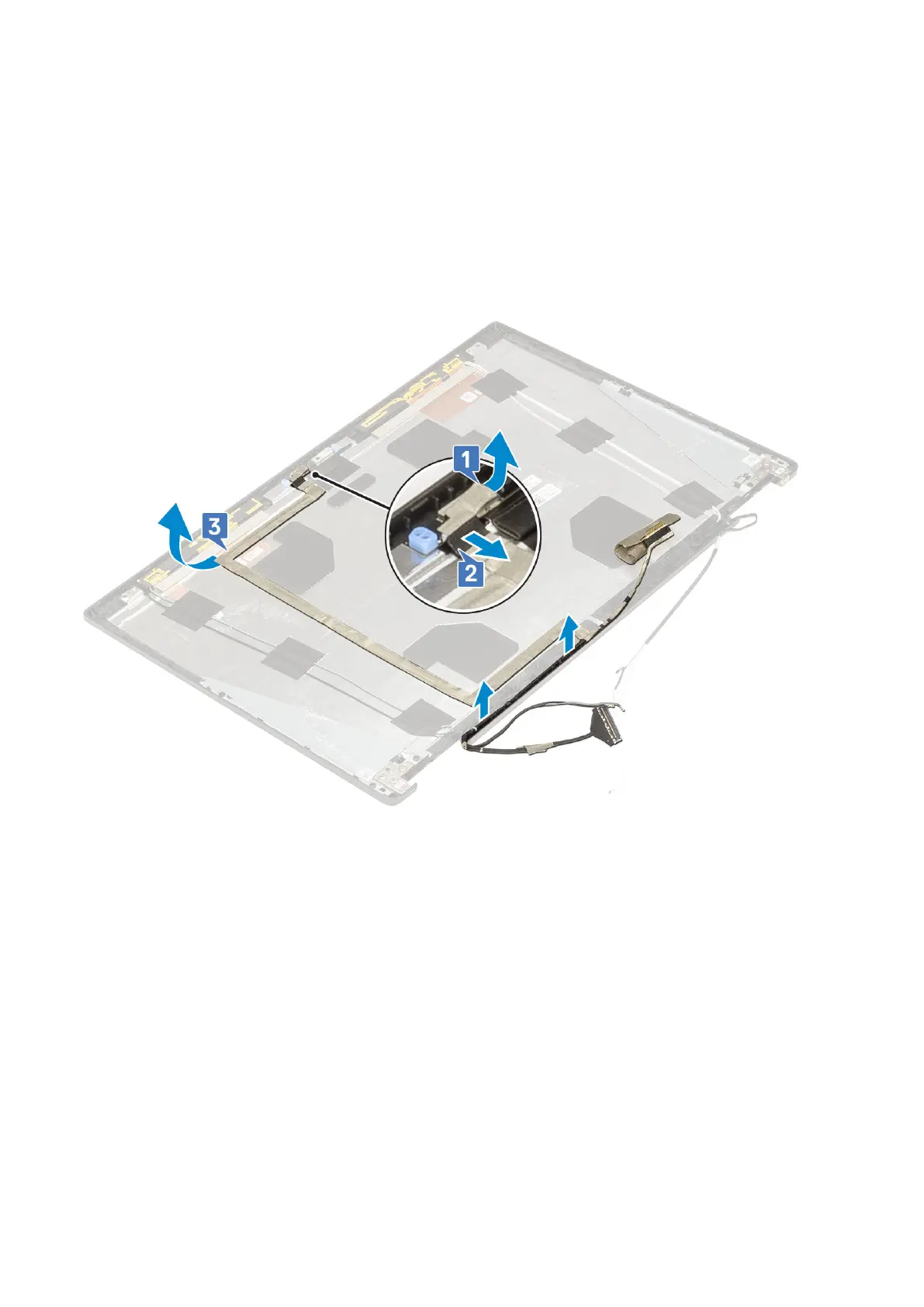

3. To remove eDP cable:
a. Peel the adhesive tape covering the camera module [1].
b. Disconnect the eDP cable from the camera module [2].
c. Peel the eDP cable from the display cover and unroute the cable from the routing channels [3].
d. Remove the eDP cable from the system.
Installing the eDP cable
1. To install eDP cable:
a. Route and affix the eDP cable on the display cover [1].
b. Connect the eDP cable to the connector on the camera module [2].
c. Affix the adhesive tape covering the camera module [3].
Removing and installing components
97
