3. To remove screws from the display panel :
a. Remove the 4 (M2.0X3.0) screws that secure the display panel to the display assembly [1].
b. Lift the display panel and turn the display panel over to access the eDP cable [2].
4. To remove display panel:
a. Peel the adhesive tape to access the eDP cable [1].
b. Peel the adhesive tapes that secures the eDP cable .
c. Lift the metal tab and disconnect the eDP cable from the connector on the display panel .
5. Remove the display panel.
Installing the display panel
1. To install the display panel:

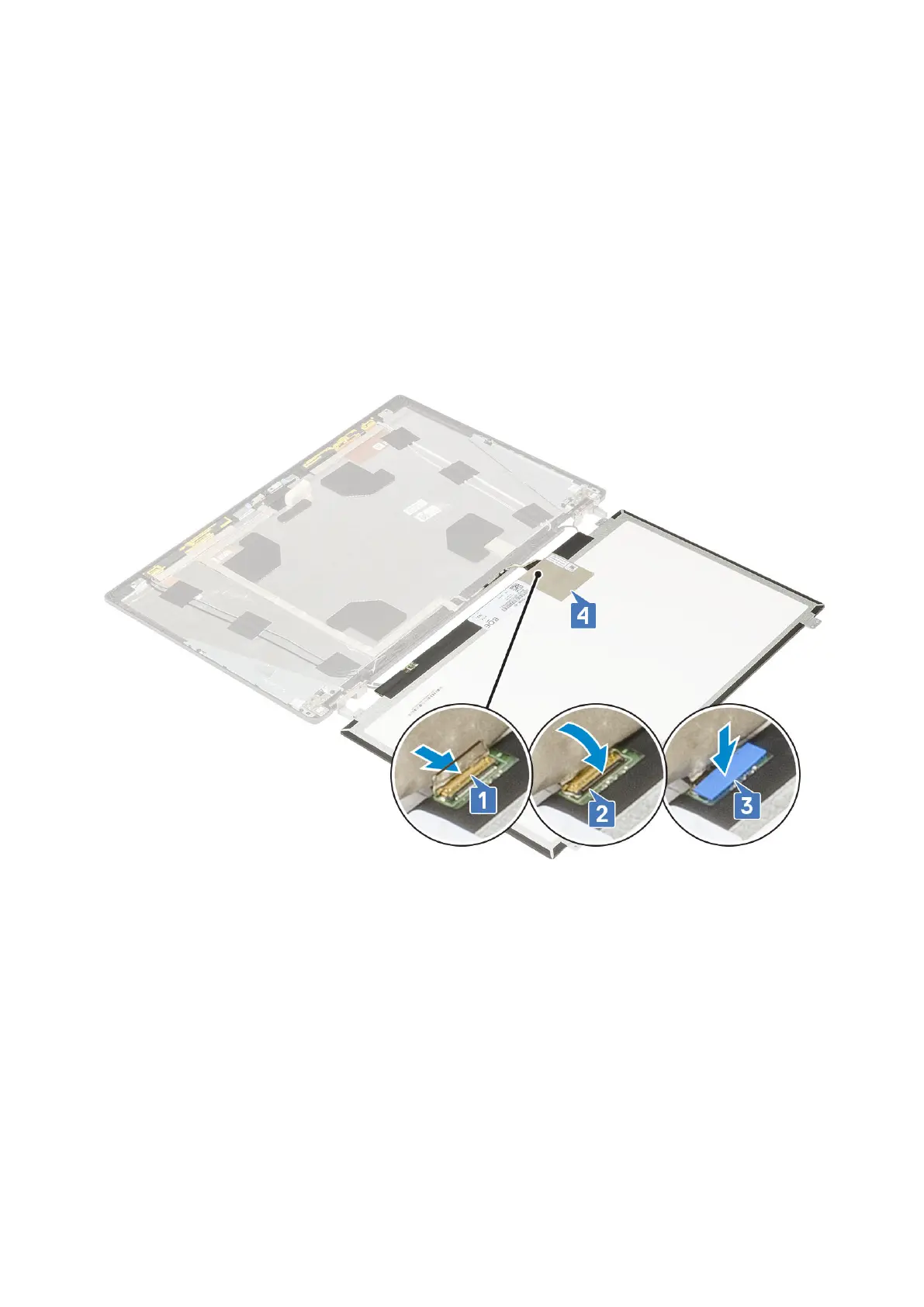

a. Connect the eDP cable to the connector on the back of the display panel and affix the adhesive tape [1, 2, 3, 4].
b. Align the display panel with the tabs on the display assembly.
c. Replace the 4 (M2.0X3) screws to secure the display panel to the display assembly.
Removing and installing components
91
