Dell Precision 7740 - Installing the Camera

h. WLAN card
i. palmrest
j. display assembly
k. display bezel
l. display panel

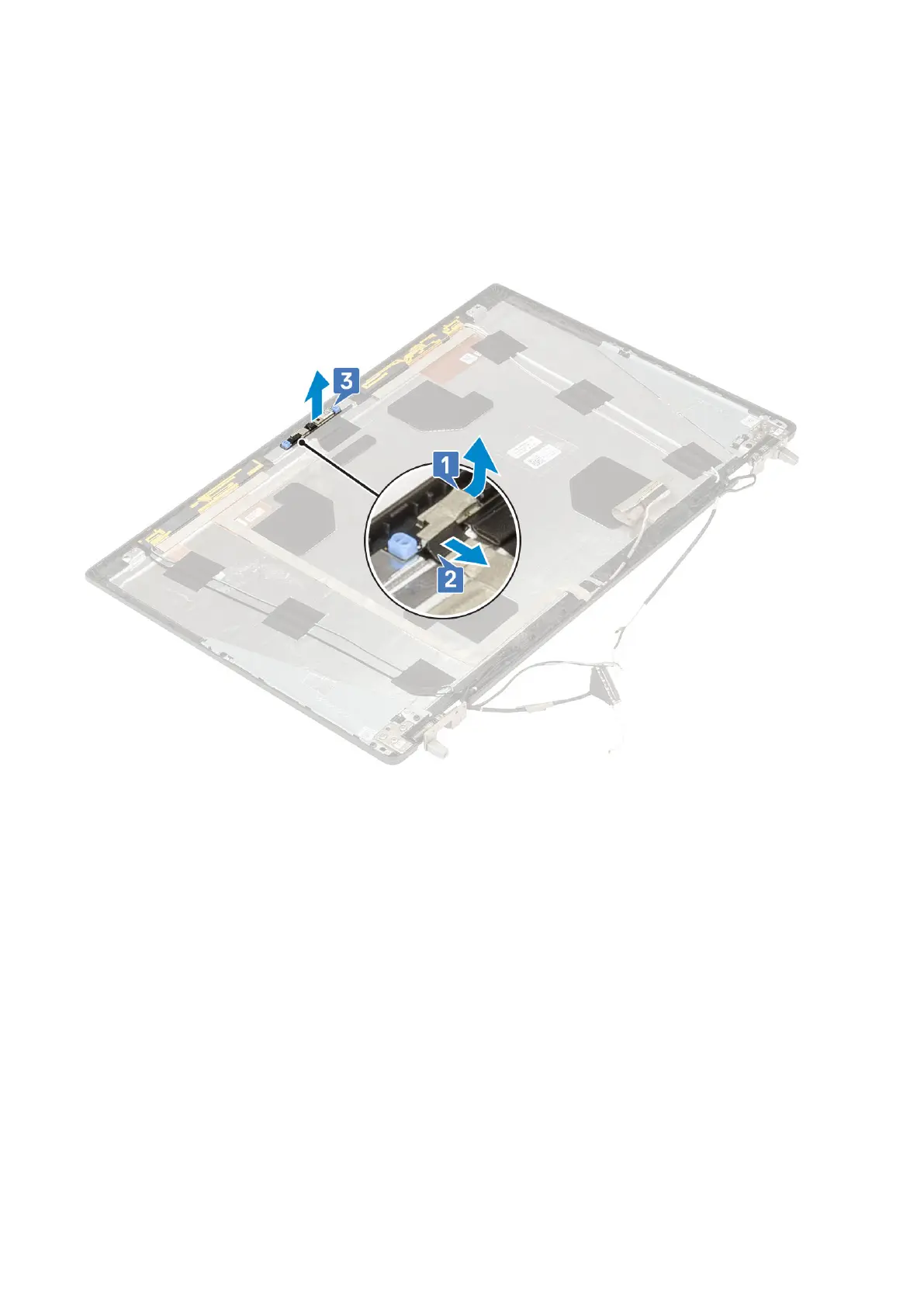

3. To remove camera:
a. Peel the adhesive tape that covers the camera module [1].
b. Disconnect the eDP cable from the camera module [2].
c. Carefully pry the camera module from the system [3].
Installing the camera
1. To install the camera:
a. Place the camera module in its slot on the system [1].
b. Connect the eDP cable to the camera module [2].
c. Affix the adhesive tape to cover the camera module [3].
Removing and installing components
95
