Dell Precision 7740 - Page 79

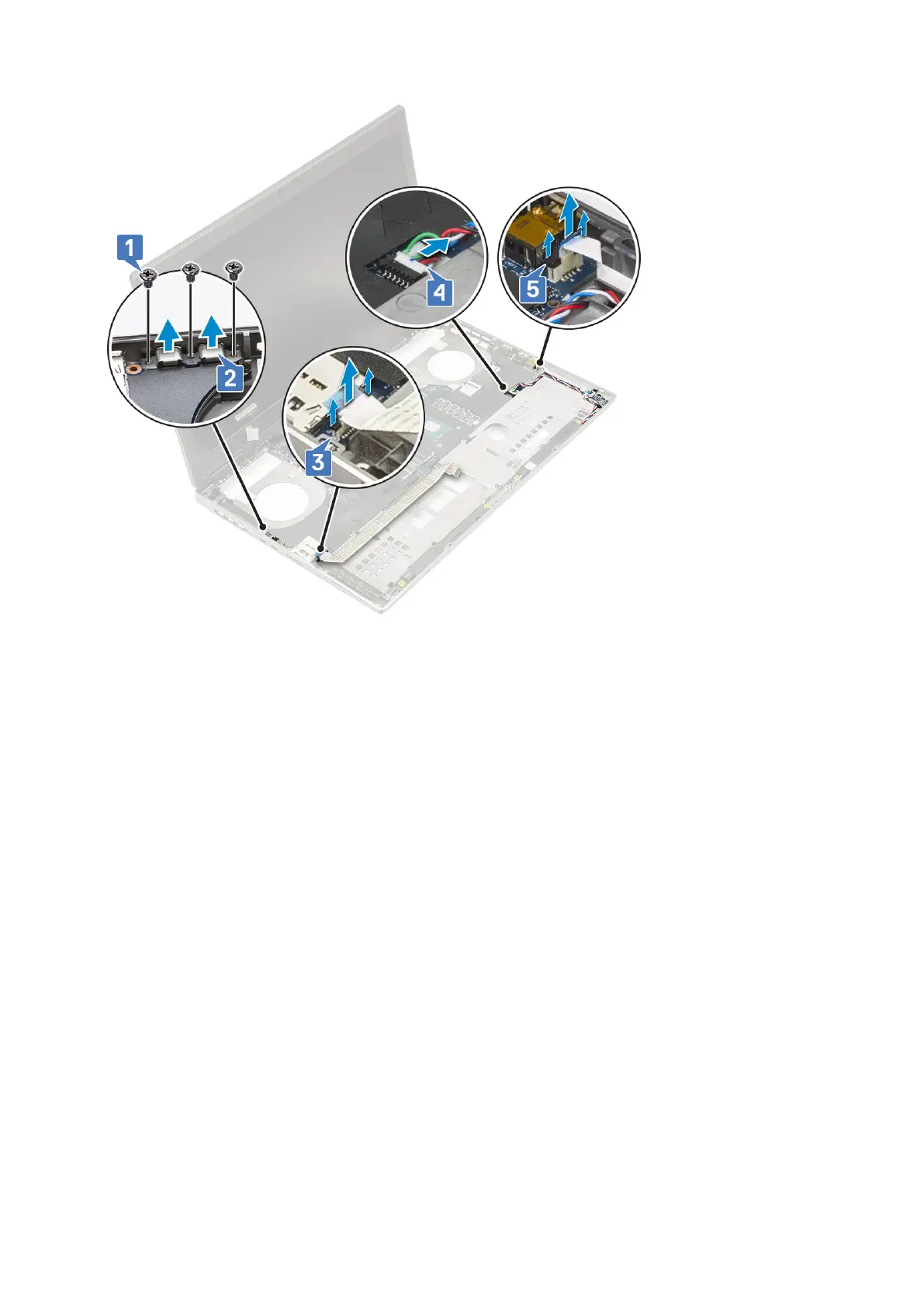

e. Remove the 2 (M2.5x5.0) screws that secure the system board in place [1].
f. Slide the system board to release the IO connectors from the opening on the top and left side of the system chassis to
remove the system board from the system chassis [3, 2].
Removing and installing components
79
