1.3 Cabling diagram

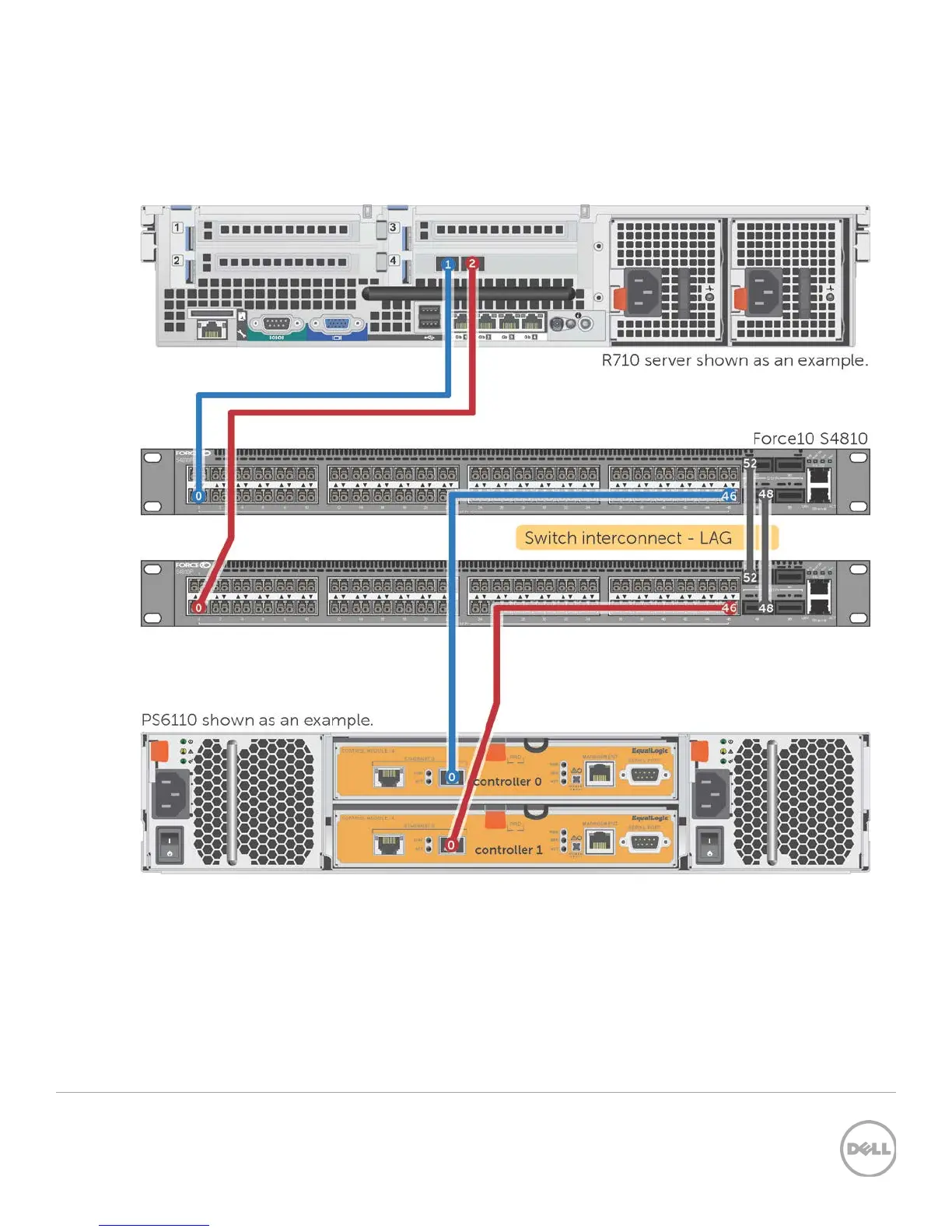

The cabling diagram shown below represents the Dell recommend method for deploying your servers and
EqualLogic arrays.
Figure 1 Cabling diagram
