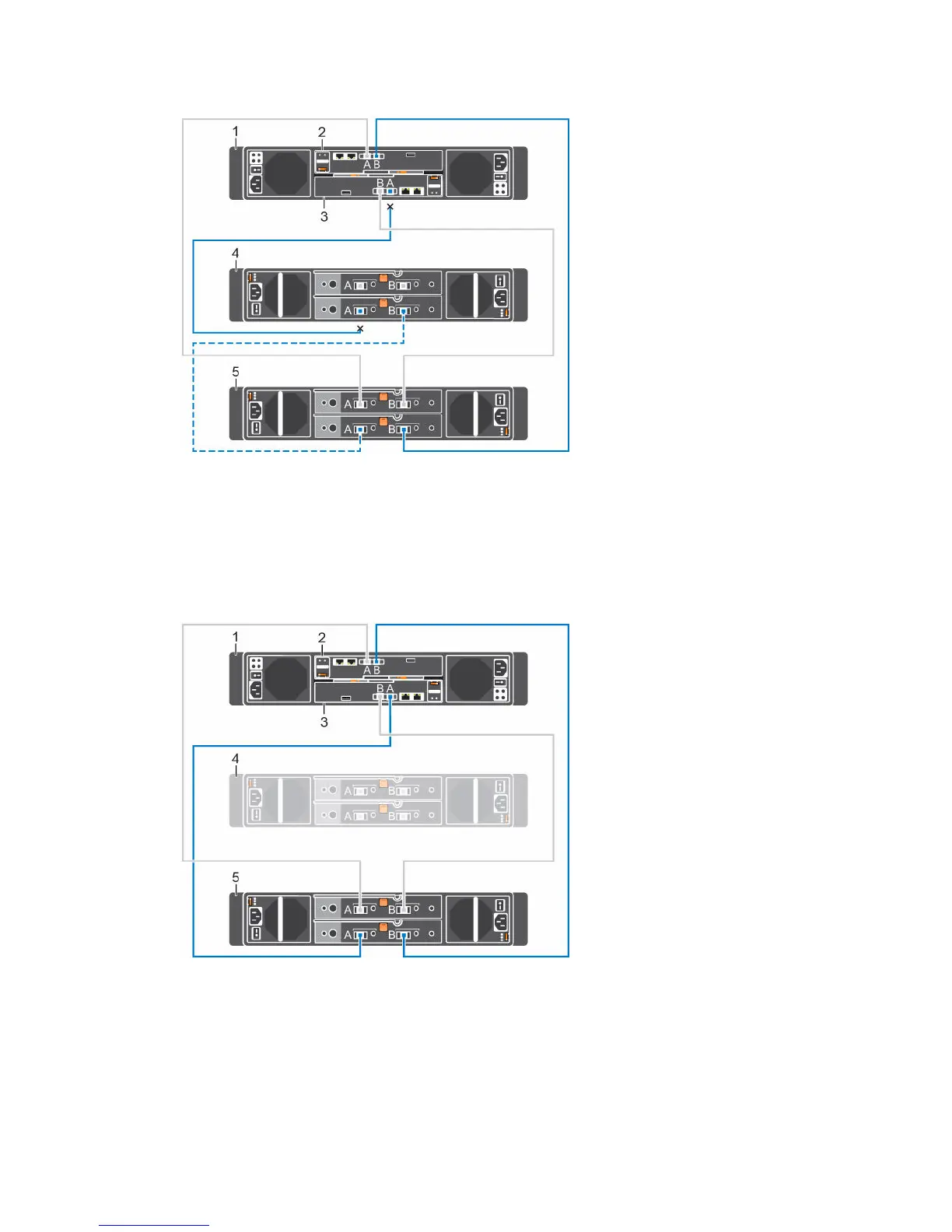

Figure 85. Disconnecting the B-Side Cables from the Expansion Enclosure
1. Storage system
2. Storage controller 1
3. Storage controller 2 4. Expansion enclosure 1
5. Expansion enclosure 2
3. Connect the B-side cable to expansion enclosure 2: bottom EMM, port A.
The expansion enclosure is now disconnected and can be removed.
Figure 86. Reconnecting the B-Side Cable to the Remaining SC100/SC120 Expansion Enclosure
1. Storage system
2. Storage controller 1
3. Storage controller 2 4. Disconnected expansion enclosure
106
Adding or Removing an Expansion Enclosure
