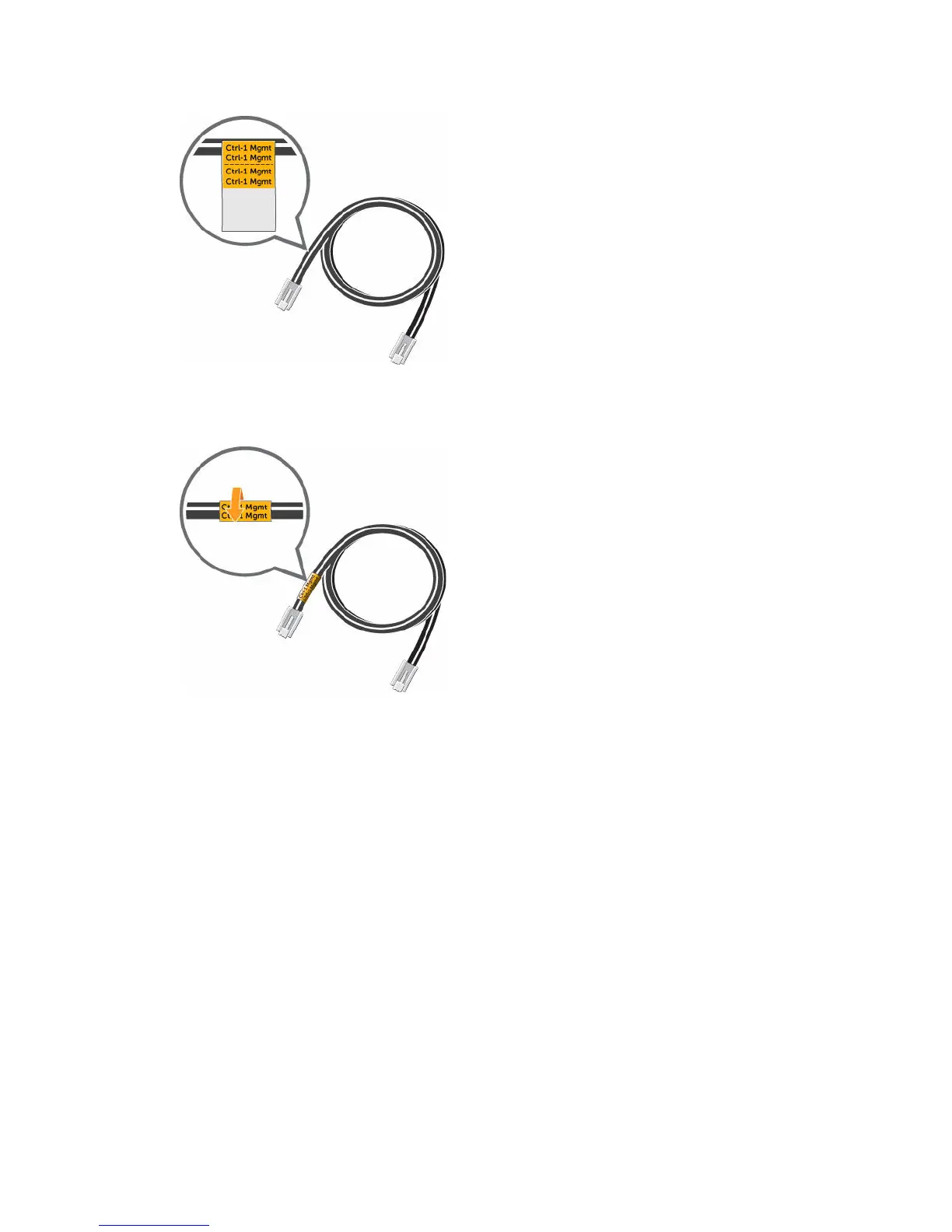

Figure 54. Attach Label to Cable
2. Wrap the label around the cable until it fully encircles the cable. The bottom of each label is clear so
that it does not obscure the text.
Figure 55. Wrap Label Around Cable
3. Apply a matching label to the other end of the cable.
Cabling the Embedded Ports for iSCSI Replication
If the Storage Center is licensed for replication, the replication port can be connected to an Ethernet
switch and used for iSCSI replication. If the
Storage Center is licensed for replication and the Flex Port
license is installed, the management port and replication port can both be connected to an Ethernet
switch and used for iSCSI replication.
Cabling the Replication Port for iSCSI Replication
If replication is licensed, the replication (REPL) port can be used to replicate data to another Storage
Center.
About this task
Connect the replication port of each storage controller to an Ethernet switch through which the Storage
Center can perform iSCSI replication.
64
Connect the Front End
