Label the Back-End Cables
Label the back-end cables that interconnect the storage controllers or label the back-end cables that
connect the storage system to the expansion enclosures.
Prerequisites
Locate the cable labels provided with the expansion enclosures.
About this task
Apply cable labels to both ends of each SAS cable to indicate the chain number and side (A or B).
Steps
1. Starting with the top edge of the label, attach the label to the cable near the connector.

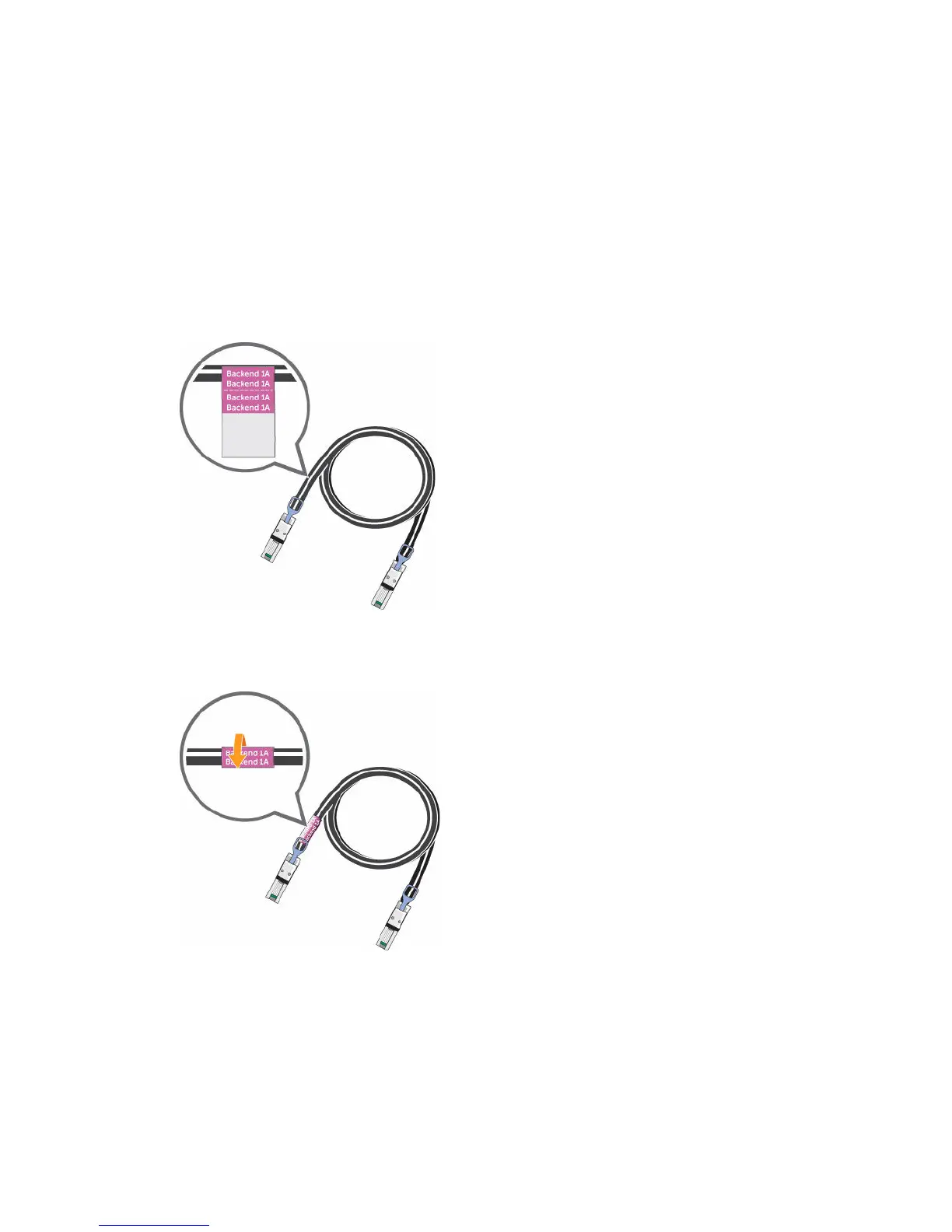

Figure 64. Attach Label to Cable
2. Wrap the label around the cable until it fully encircles the cable. The bottom of each label is clear so
that it does not obscure the text.
Figure 65. Wrap Label Around Cable
3. Apply a matching label to the other end of the cable.
