Dell Storage Center SCv2000 - Disconnect the SC100;SC120 Expansion Enclosure from the B-Side of the Chain

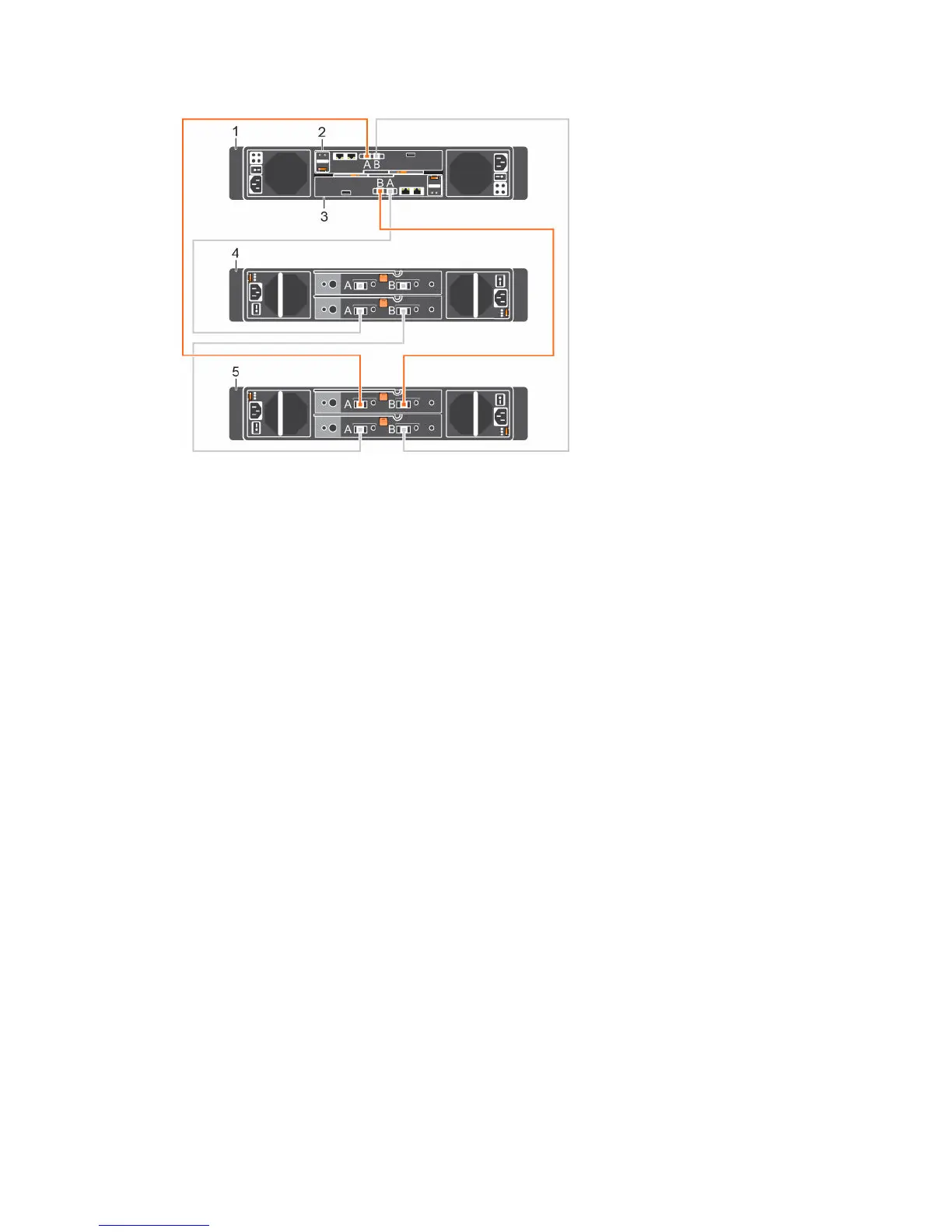

Figure 84. Reconnecting the A-Side Cable to the Remaining Expansion Enclosure
1. Storage system
2. Storage controller 1
3. Storage controller 2 4. Expansion enclosure 1
5. Expansion enclosure 2
Disconnect the SC100/SC120 Expansion Enclosure from the B-Side of the
Chain
Disconnect the B-side cables from the expansion enclosure that you want to remove.
1. Disconnect the B-side cable (shown in blue) from expansion enclosure 1: bottom EMM, port A. The
A-side cables continue to carry IO while the B-side is disconnected.
2. Remove the B-side cable between expansion enclosure 1: bottom EMM, port B and expansion
enclosure 2: bottom EMM, port A.
