Example

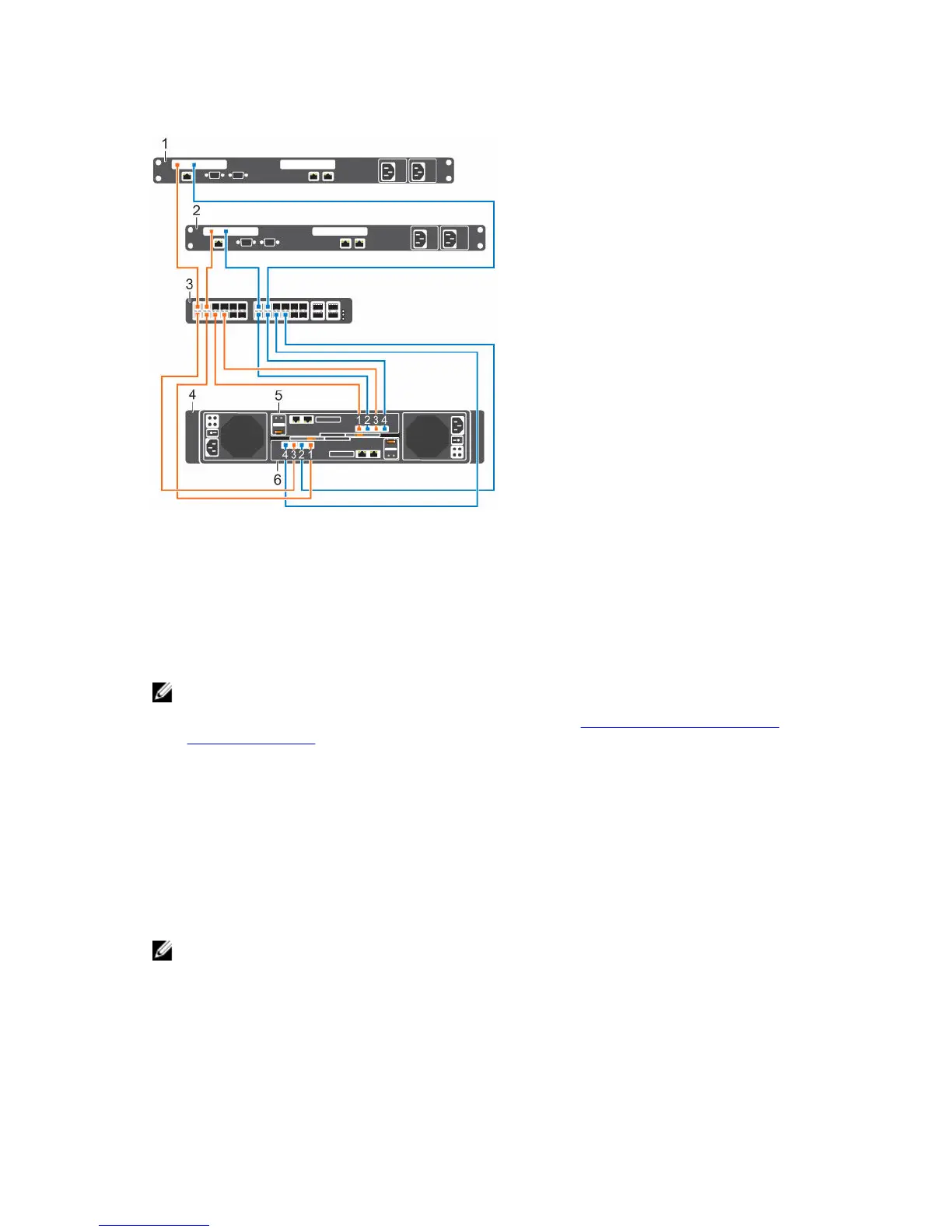

Figure 43. Storage System with Dual 1 GbE Storage Controllers and One Ethernet Switch
1. Server 1 2. Server 2
3. Ethernet switch (fault domain 1 and fault
domain 2)
4. Storage system
5. Storage controller 1 6. Storage controller 2
Next steps
Install or enable MPIO on the host servers.
NOTE: After the Storage Center configuration is complete, run the host access wizard to configure
host server access and apply MPIO best practices. For the latest best practices, see the Dell Storage
Center Best Practices document on the Dell TechCenter site (http://en.community.dell.com/
techcenter/storage/).
Two iSCSI Networks with a Single 10 GbE 2-Port Storage Controller
Use two iSCSI networks to prevent an unavailable port or switch from causing a loss of connectivity
between the host servers and a storage system with a single 10 GbE 2-port storage controller.
About this task
This configuration includes two fault domains, two iSCSI networks, and two Ethernet switches. The
storage controller connects to the Ethernet switches using two iSCSI connections.
If a physical port or Ethernet switch becomes unavailable, the storage system is accessed from the switch
in the other fault domain.
NOTE: This configuration is vulnerable to storage controller unavailability, which results in a loss of
connectivity between the host servers and the storage system.
Steps
1. Connect each server to the iSCSI network.
2. Connect fault domain 1 (shown in orange) to iSCSI network 1.
Storage controller: port 1 to Ethernet switch 1.
54
Connect the Front End
