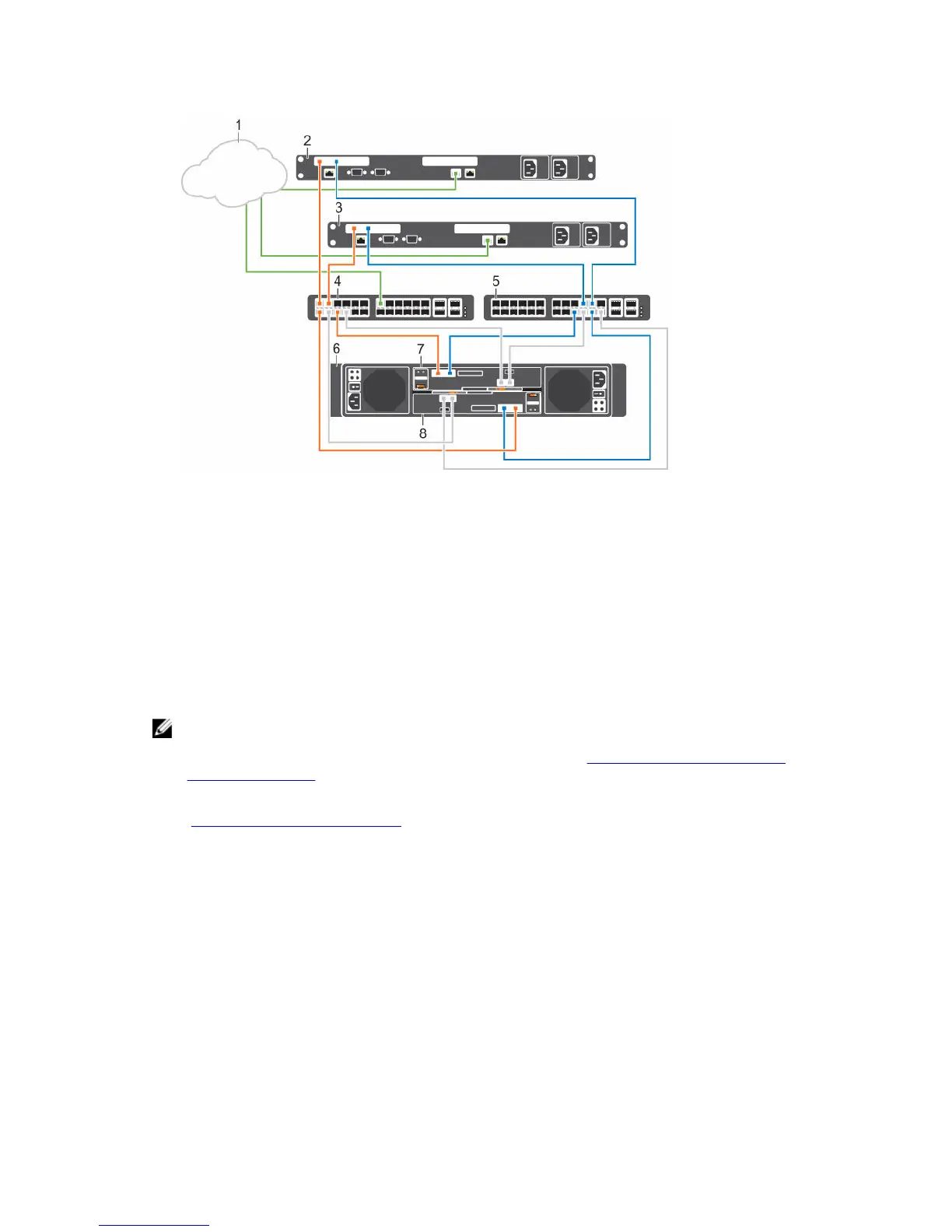

Figure 59. Two iSCSI Networks using the Embedded Ethernet Ports on Dual iSCSI Storage Controllers
1. Corporate/management network 2. Server 1
3. Server 2 4. Ethernet switch 1 (fault domain 1)
5. Ethernet switch 2 (fault domain 2) 6. Storage system
7. Storage controller 1 8. Storage controller 2
5. To configure the fault domains and ports, click the Configure Embedded iSCSI Ports link on the
Configuration Complete page of the Discover and Configure Uninitialized SCv2000 Series Storage
Centers wizard.
Next steps
Install or enable MPIO on the host servers.
NOTE: After the Storage Center configuration is complete, run the host access wizard to configure
host server access and apply MPIO best practices.
For the latest best practices, see the Dell Storage
Center Best Practices documents on the Dell TechCenter site (http://en.community.dell.com/
techcenter/storage/).
Related Tasks
Configure Embedded iSCSI Ports
Connect the Front End
