Removing the optical drive
1. Follow the procedure in Before working inside your computer.
2. Remove the battery.
3. To remove the optical drive:

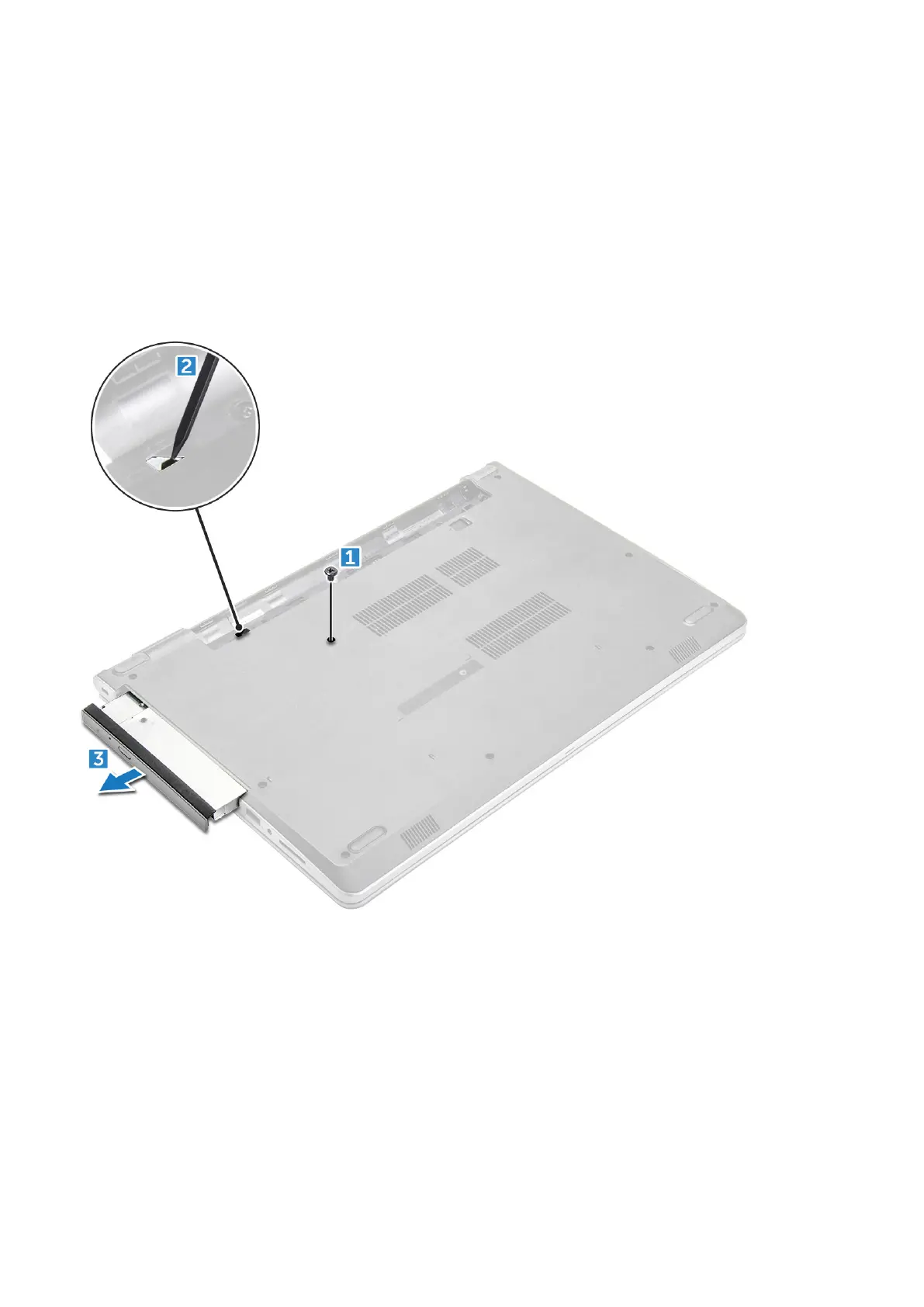

a. Remove the two M2L3 screws that secure the optical drive to the computer [1].
b. Using a plastic scribe, push the tab in the direction of the arrow indicated on the chassis. [2].
c. Slide the optical drive out of the computer [3].
Removing the optical drive bracket
1. Follow the procedure in Before working inside your computer.
2. Remove the:
a. battery
b. optical drive
3. To remove the optical drive from the bracket:
a. Remove the single M2L2(Big head05) screw that secures the optical drive bracket.
b. Remove the optical drive bracket from the optical drive .
