Camera
Removing the camera
1. Follow the procedure in Before working inside your computer.
2. Remove the:
a. battery
b. optical drive
c. keyboard
d. base cover
e. WLAN card
f. display assembly
g. display bezel

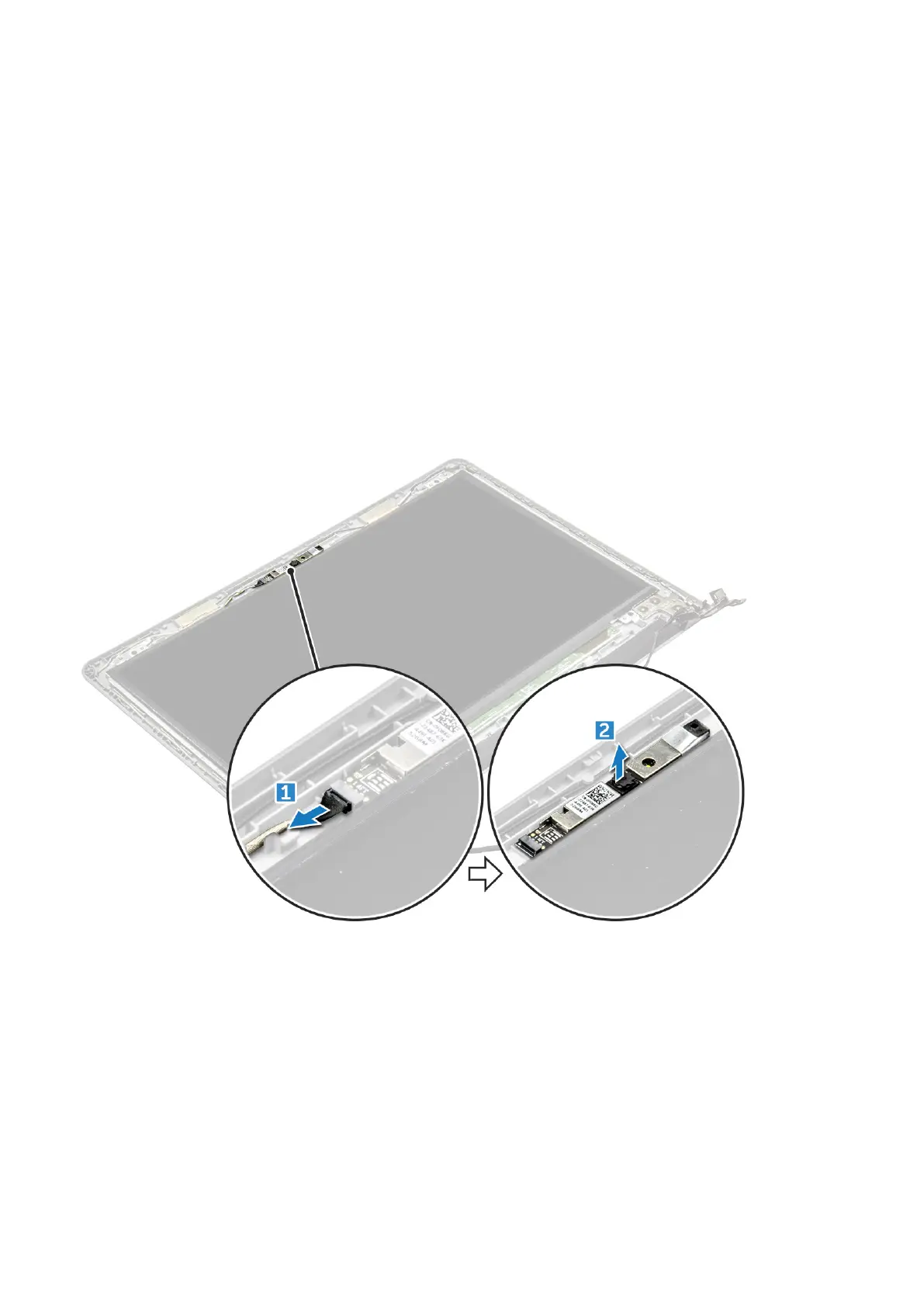

3. To remove the camera:
a. Disconnect the camera cable from the camera [1].
b. Remove the camera from the display assembly [2].
Installing the camera
1. Install the camera into the slot on the display assembly.
2. Connect the camera cable.
3. Install the:
a. display bezel
b. display assembly
c. WLAN Card
d. base cover
e. keyboard
f. optical drive
42
Disassembly and reassembly
