CAUTION: Practice caution when handling the LCD HUD by supporting it with one hand, while working on
the hinges.

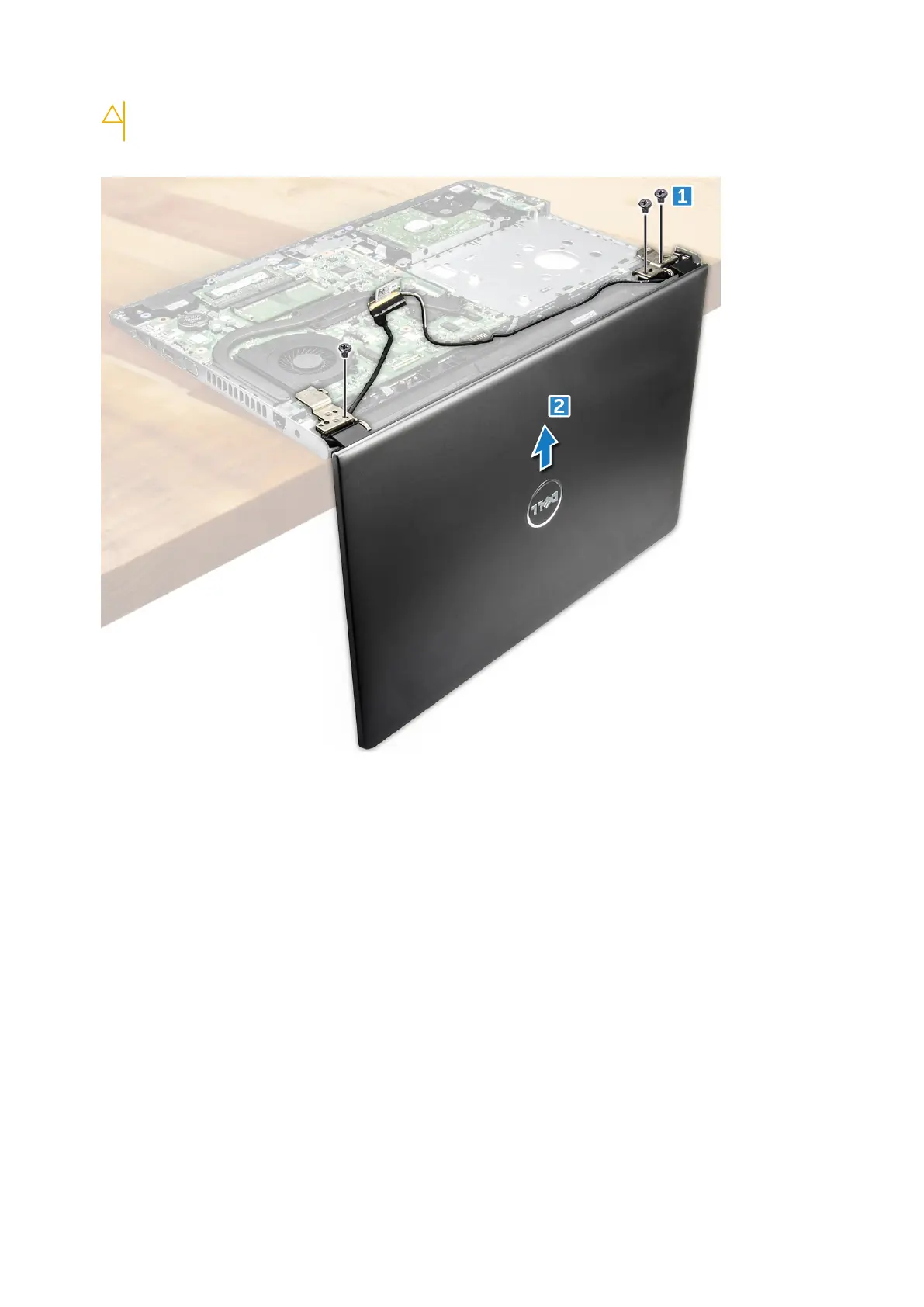

b. Lift and remove the display assembly [2].
Installing the display assembly
1. Align the display assembly with the chassis.
2. Connect the eDP cable to the connector on the system board and lock the locking tab.
3. Affix the adhesive tape to secure the eDP cable.
4. Route the WLAN and display assembly cables through the cable-securing tabs.
5. Tighten the display hinges three M2.5L8 screws to secure the display assembly.
6. Install the:
a. WLAN Card
b. base cover
c. keyboard
d. optical drive
e. battery
7. Follow the procedure in After working inside your computer.
40
Disassembly and reassembly
