Installing the display panel

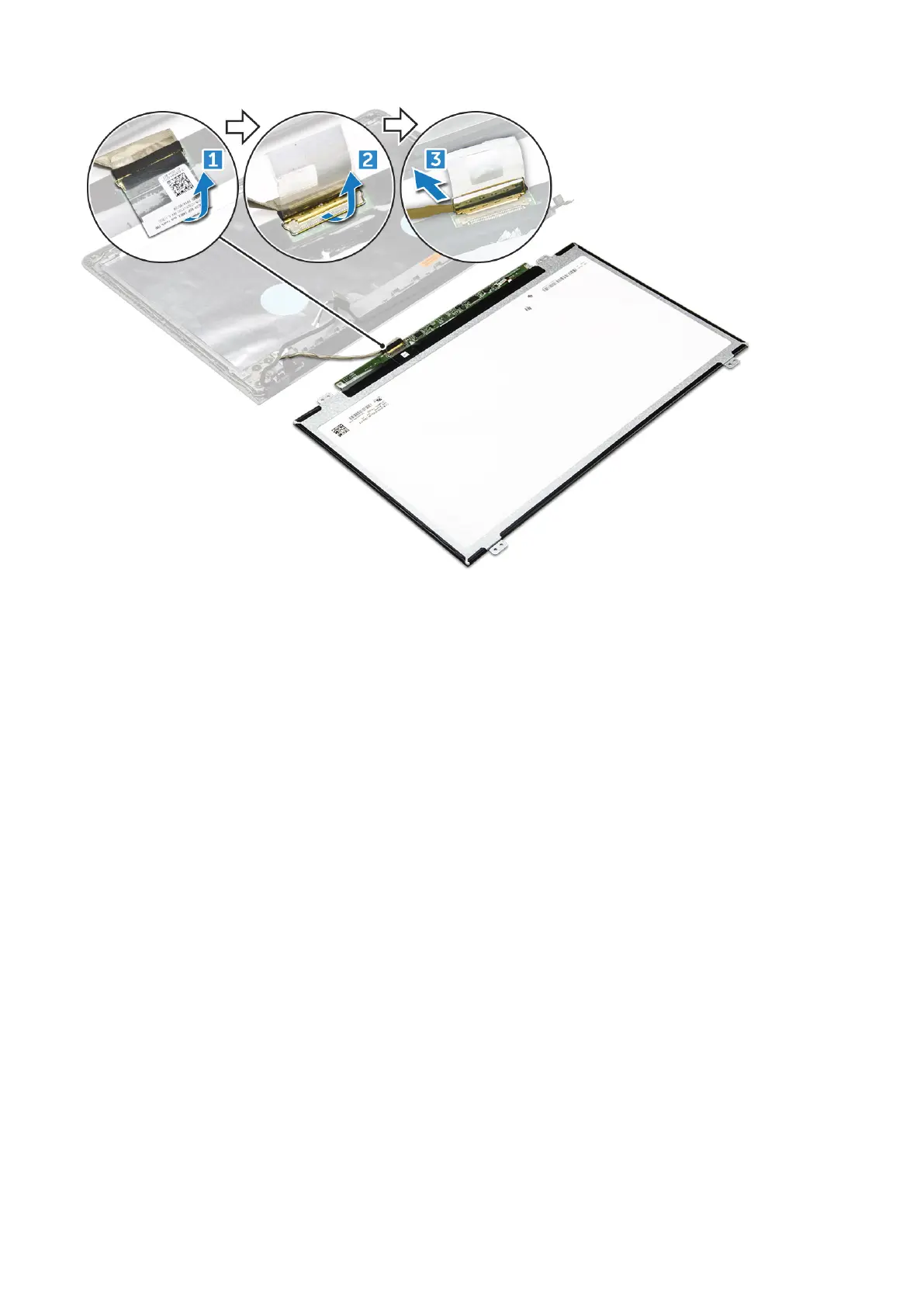

1. Connect the eDP cable to the display panel.
2. Affix the tape to secure the display cable.
3. Place the display panel on the display assembly.
4. Tighten the M2.5L8 screws to secure the display panel to the display assembly.
5. Install the:
a. display bezel
b. display assembly
c. WLAN Card
d. base cover
e. keyboard
f. optical drive
g. battery
6. Follow the procedure in After working inside your computer.
Bisagras de la pantalla
Removing the display hinges
1. Follow the procedure in Before working inside your computer.
2. Remove the:
a. battery
b. optical drive
c. keyboard
d. base cover
e. WLAN card
44
Disassembly and reassembly
