Dell Vostro 15 - Panel de la Pantalla; Removing the Display Panel

g. battery
4. Follow the procedure in After working inside your computer.
Panel de la pantalla
Removing the display panel
1. Follow the procedure in Before working inside your computer.
2. Remove the:
a. battery
b. optical drive
c. keyboard
d. base cover
e. WLAN card
f. display assembly
g. display bezel
3. To remove the display panel:

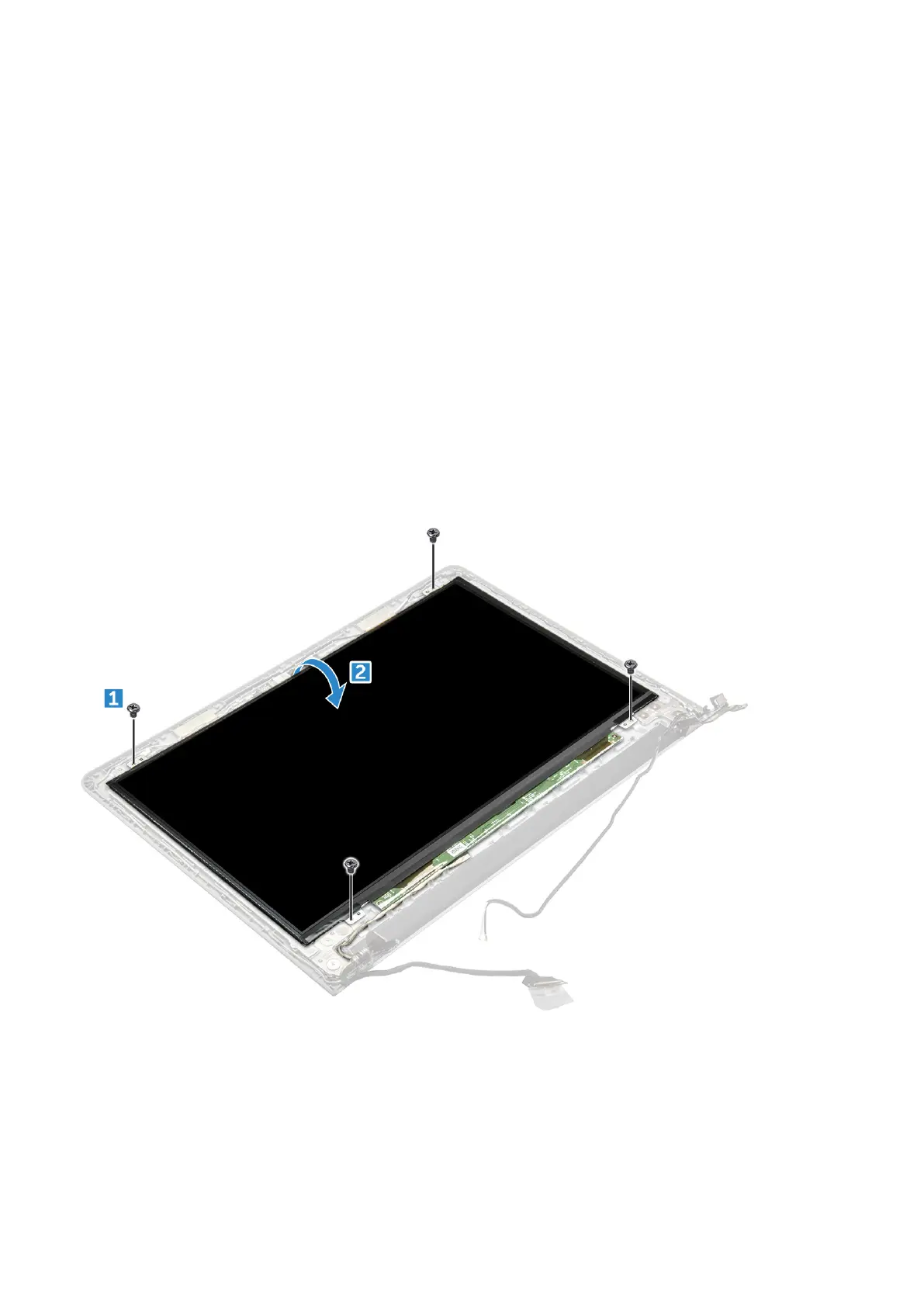

a. Remove the M2.5L8 screws that secure the display panel to the display assembly [1].
b. Lift the display panel to access the cables underneath [2].
4. To disconnect the cable:
a. Remove the tape that secures the eDP cable to the display panel [1].
b. Lift the locking tab and remove the eDP cable [2].
c. Remove the display panel from the computer [3].
Disassembly and reassembly
43
