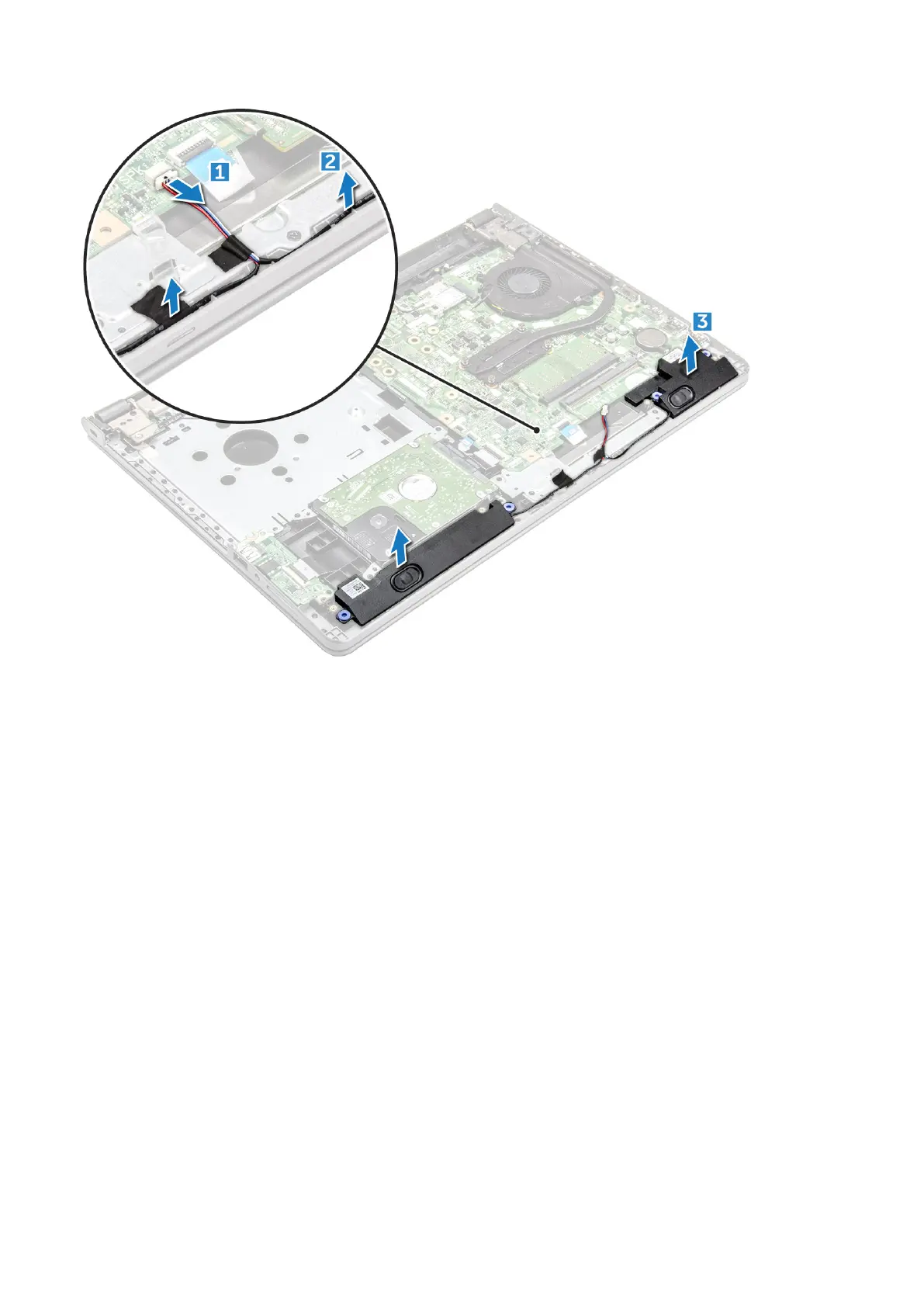

Installing the speakers
1. Place the speakers into the slots on the computer.
2. Connect the speaker cable to the system board.
3. Install the:
a. base cover
b. keyboard
c. optical drive
d. battery
4. Follow the procedure in After working inside your computer
Placa base
Removing the system board
1. Follow the procedure in Before working inside your computer.
2. Remove the:
a. battery
b. optical drive
c. keyboard
d. base cover
e. WLAN card
Disassembly and reassembly
31
