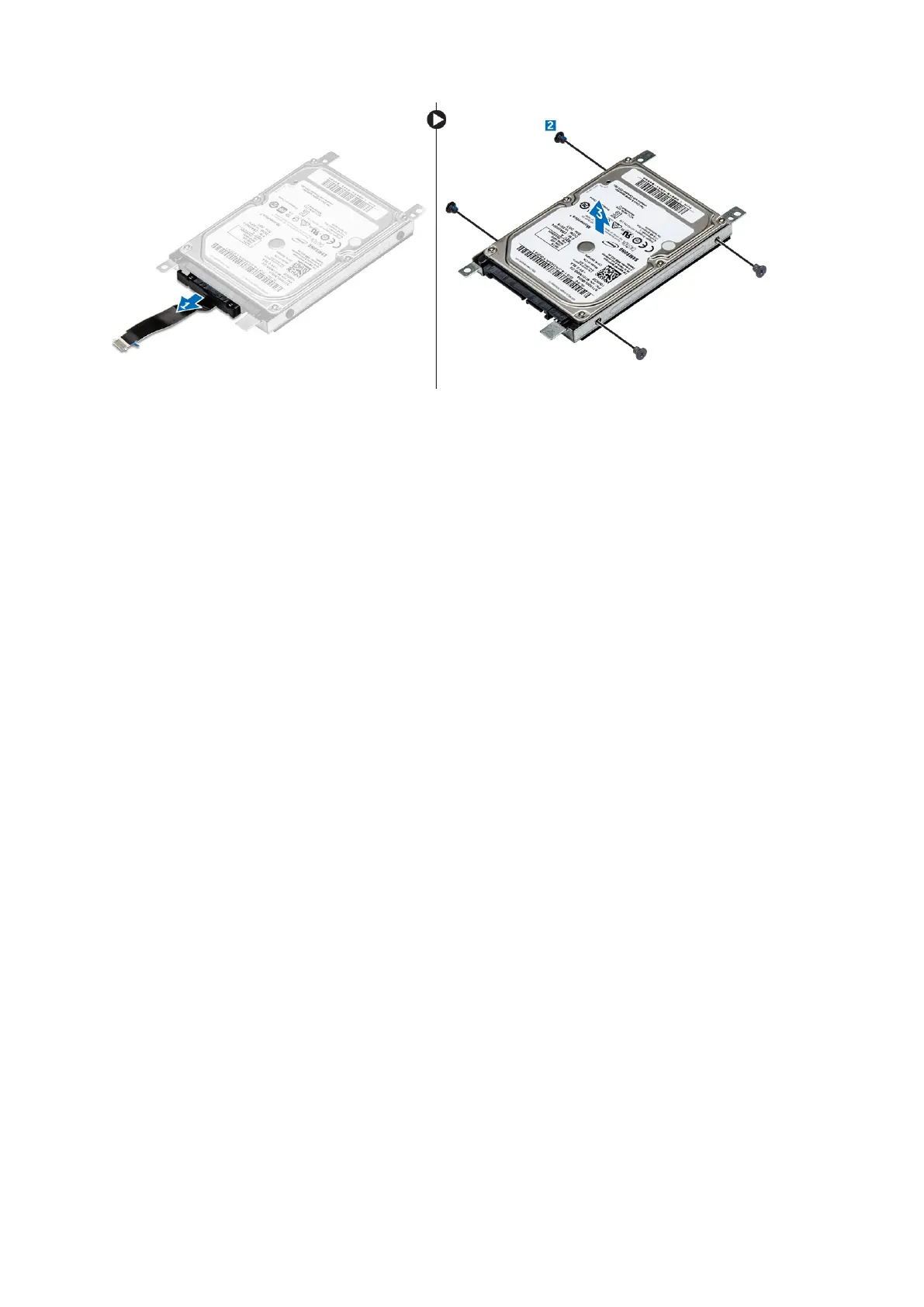

Installing the hard drive into the hard drive bracket
1. Align the screw holders and insert the hard drive into the hard drive bracket.
2. Tighten the four M3L3 screws to secure the hard drive to the hard drive bracket.
3. Connect the hard drive cable connector to the hard drive.
4. Install the:
a. hard drive assembly
b. base cover
c. keyboard
d. optical drive
e. battery
5. Follow the procedure in After working inside your computer
Installing the hard drive assembly
1. Insert the hard drive assembly into the slot on the computer.
2. Tighten the four M2L3 screws to secure the hard drive assembly to the computer.
3. Connect the hard drive cable to the connector on the system board.
4. Install the:
a. base cover
b. keyboard
c. optical drive
d. battery
5. Follow the procedures in After working inside your computer.
Tarjeta WLAN
Removing the WLAN card
1. Follow the procedure in Before working inside your computer.
2. Remove the:
a. battery
b. optical drive
c. keyboard
d. base cover
