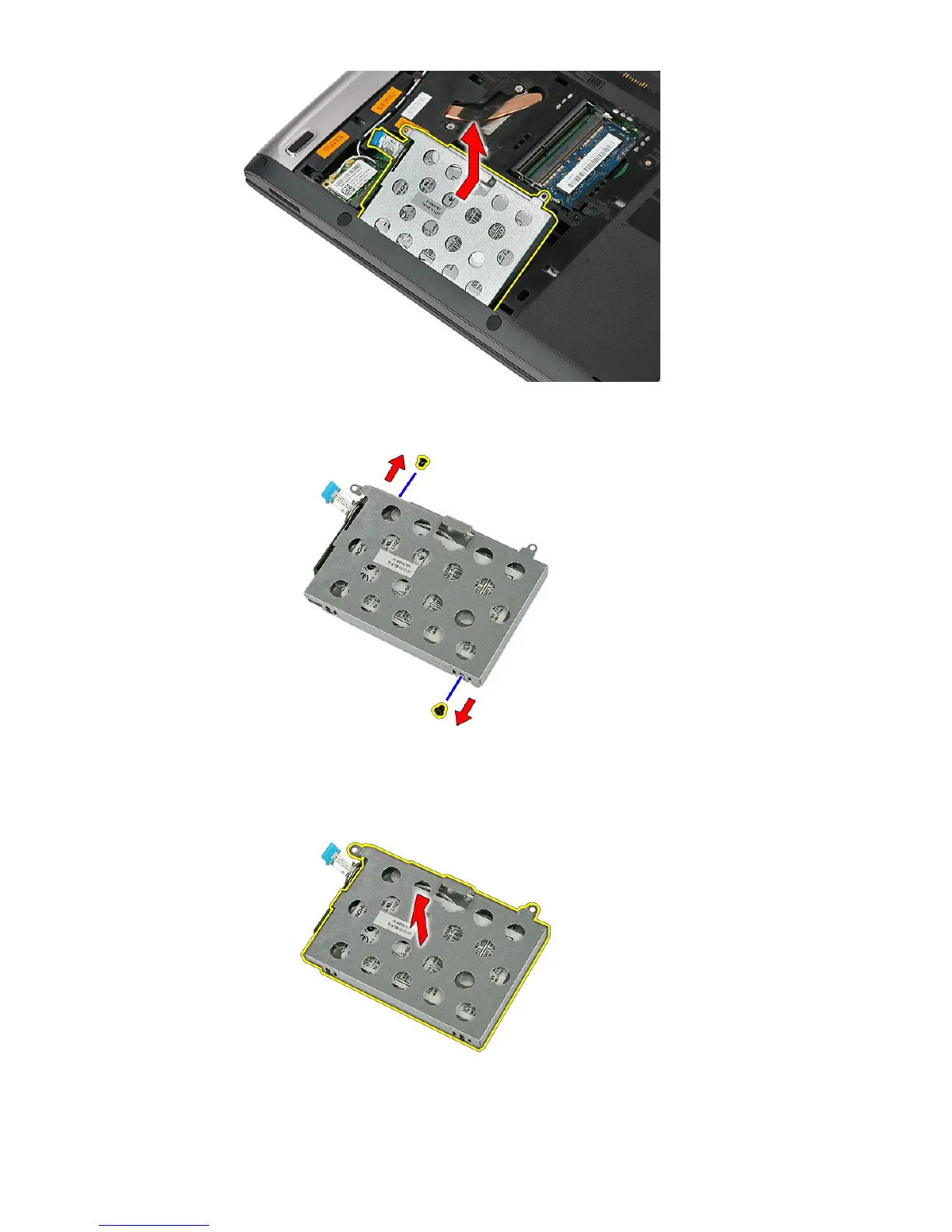

8. Remove the screws that secure the hard-drive bracket to the hard drive.

9. Lift the hard-drive bracket up and away from the hard drive.

25
