Dell Vostro 3350 - LED Board; Removing The LED Board

15
LED Board
Removing The LED Board
1. Follow the procedures in Before Working On Your Computer .
2. Remove the battery .
3. Remove the memory card .
4. Remove the access panel .
5. Remove the hard drive .
6. Remove the keyboard .
7. Remove the palm rest .

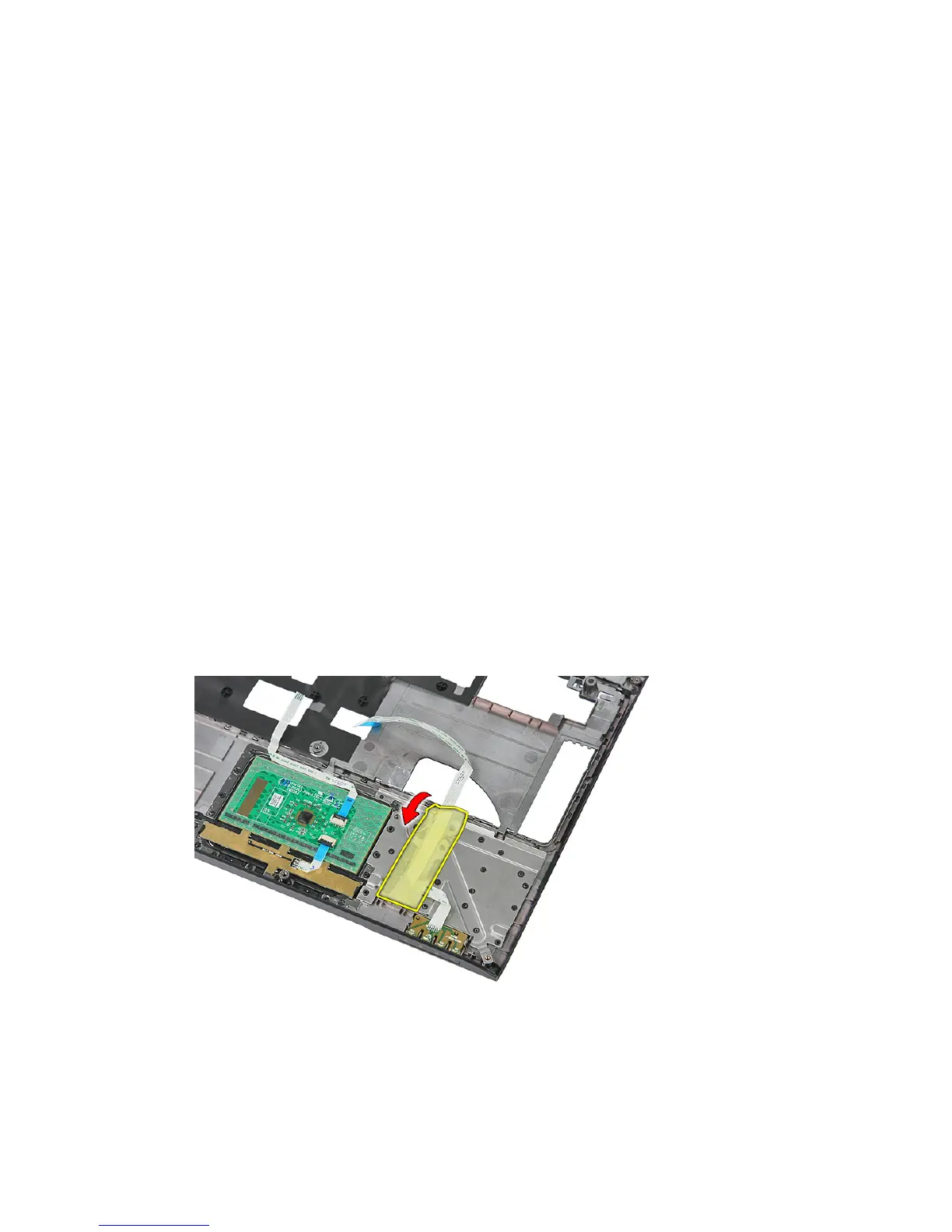

8. Peel open the tape that secures the LED board cable.
9. Pry the latches that secure the LED board; then lift up and remove the LED
board from the computer.
