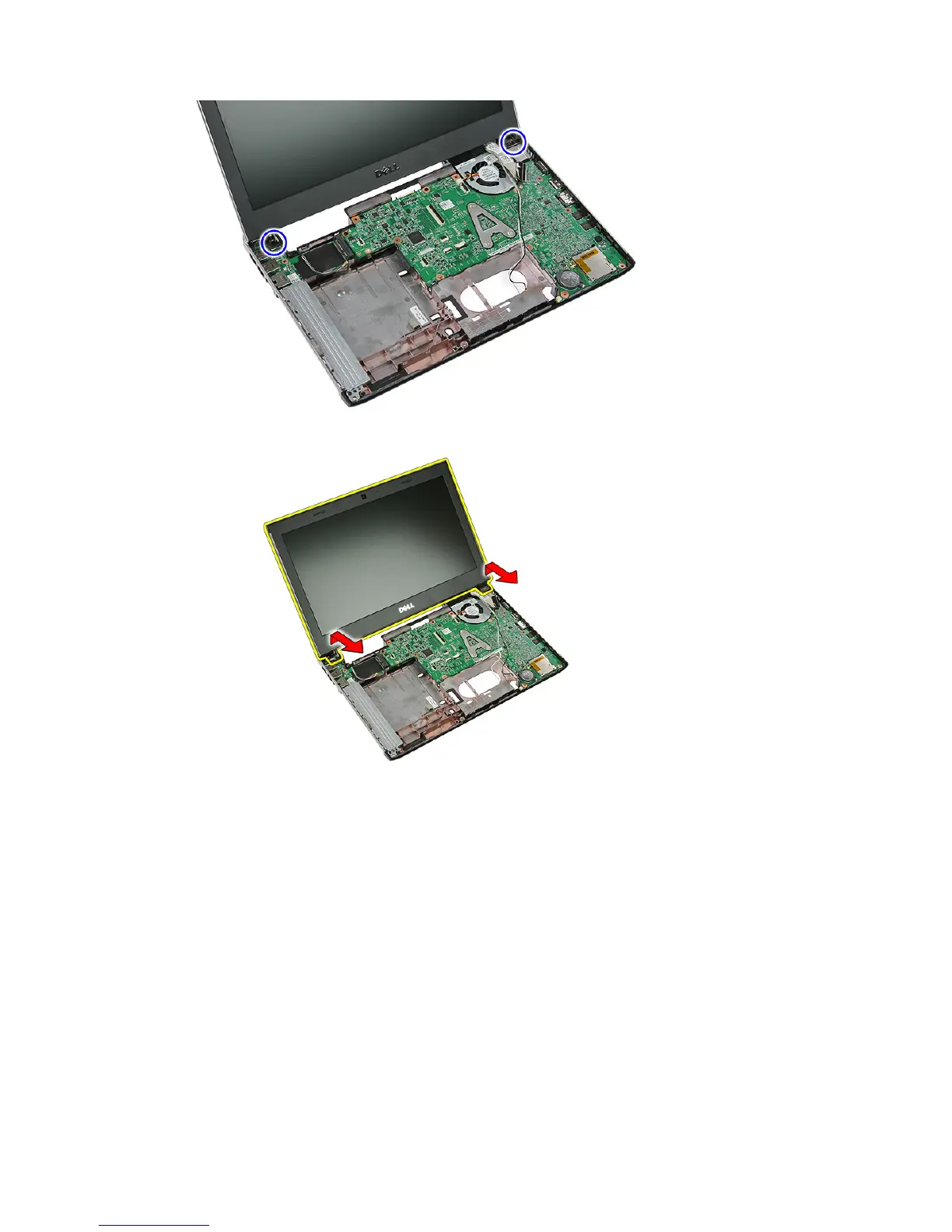

14. Remove the screws that secure the display assembly to the computer.
15. Lift the display assembly up from the computer, then forward and remove.
Installing The Display Assembly
1. Attach the display assembly to the base of the computer.
2. Tighten the screws to secure the display assembly.
3. Secure the antenna cables to the routing channels.
4. Connect display cable to system board.
5. Connect antenna cables to installed wireless solutions.
6. Install the
palm rest
.
7. Install the
WWAN card
.
8. Install the
keyboard
.
71
