Dell Vostro 3350 - Fingerprint Reader; Removing The Fingerprint Reader

14
Fingerprint Reader
Removing The Fingerprint Reader
1. Follow the procedures in Before Working On Your Computer .
2. Remove the battery .
3. Remove the memory card .
4. Remove the access panel .
5. Remove the hard drive .
6. Remove the keyboard .
7. Remove the palm rest .

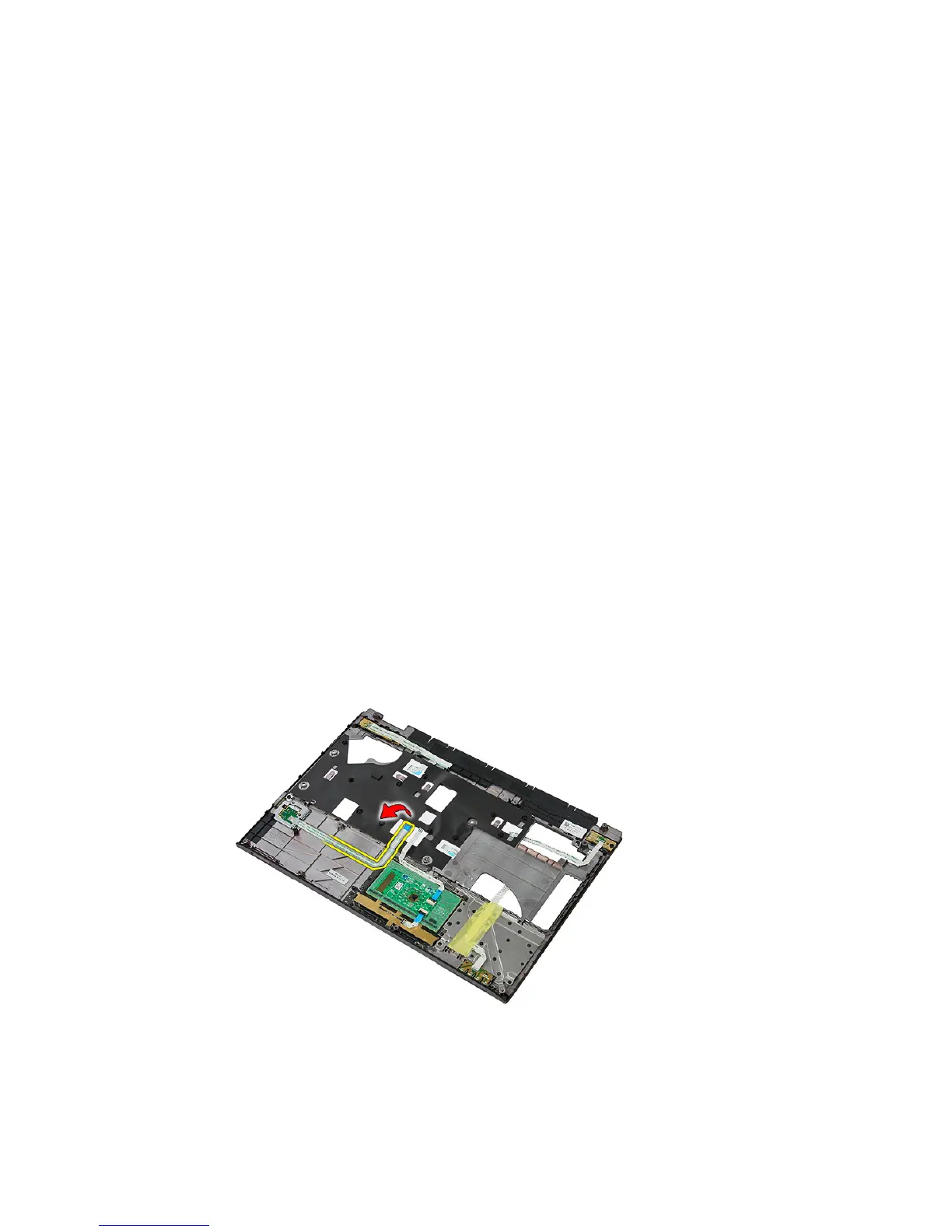

8. Release the fingerprint reader cable from the adhesive affixing it to the
palm rest.
9. Remove the screw that secures the fingerprint reader bracket.
49
