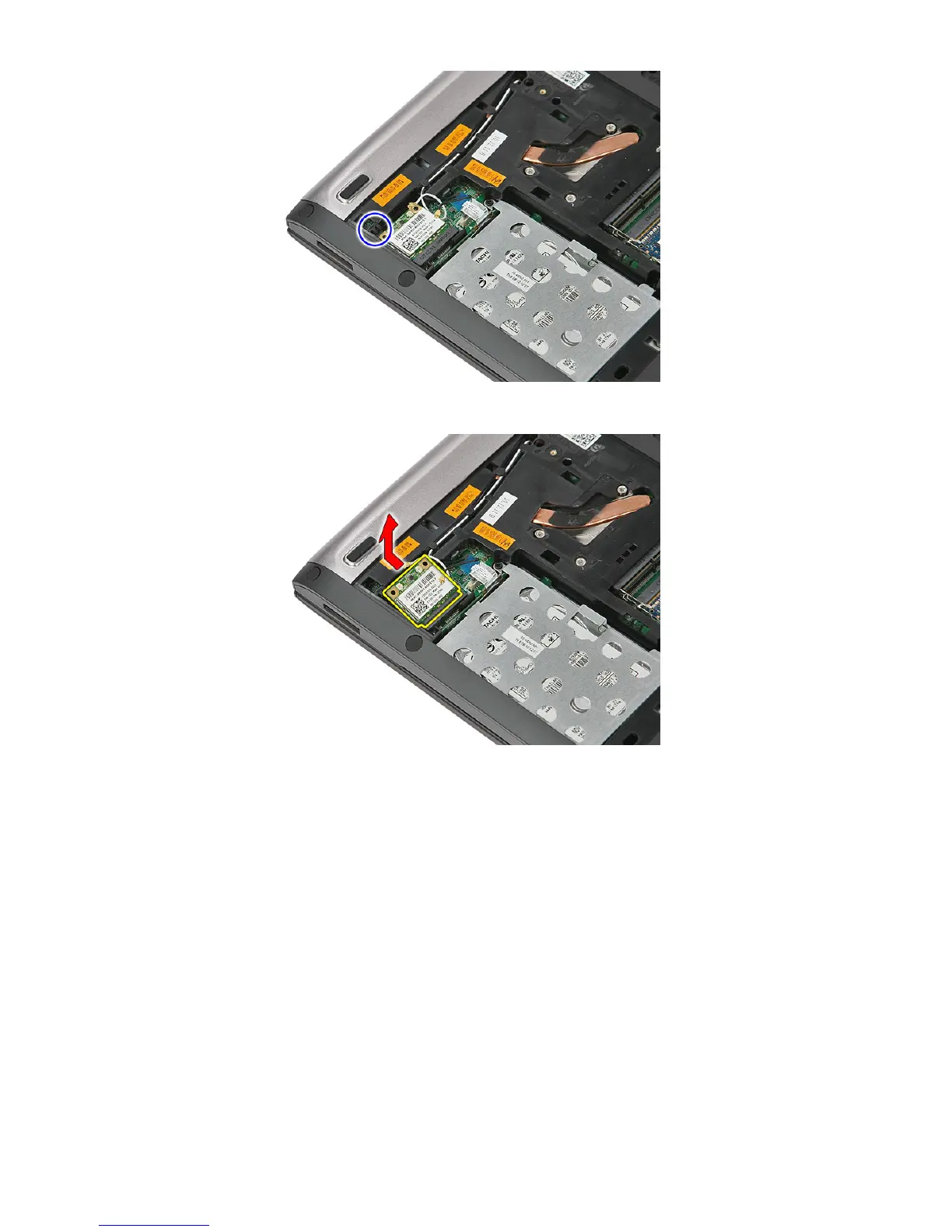

6. Remove the WLAN card from the computer.
Installing The Wireless Local Area Network
(WLAN) Card
1. Slide the WLAN card into its slot.
2. Connect the antenna cables according to the color code on the WLAN
card.
3. Install the
access panel
.
4. Install the
battery
.
5. Follow the procedures in
After Working Inside Your Computer
.
28
