Dell Vostro 3350 - Heat Sink; Removing The Heat Sink

19
Heat Sink
Removing The Heat Sink
1. Follow the procedures in Before Working On Your Computer .
2. Remove the battery .
3. Remove the memory card .
4. Remove the
access panel .
5. Remove the memory .
6. Remove the
WLAN card .
7. Remove the optical drive .
8. Remove the hard drive .
9. Remove the
keyboard .
10. Remove the WWAN card .
11. Remove the palm rest .
12. Remove the
display assembly .
13. Remove the system board .

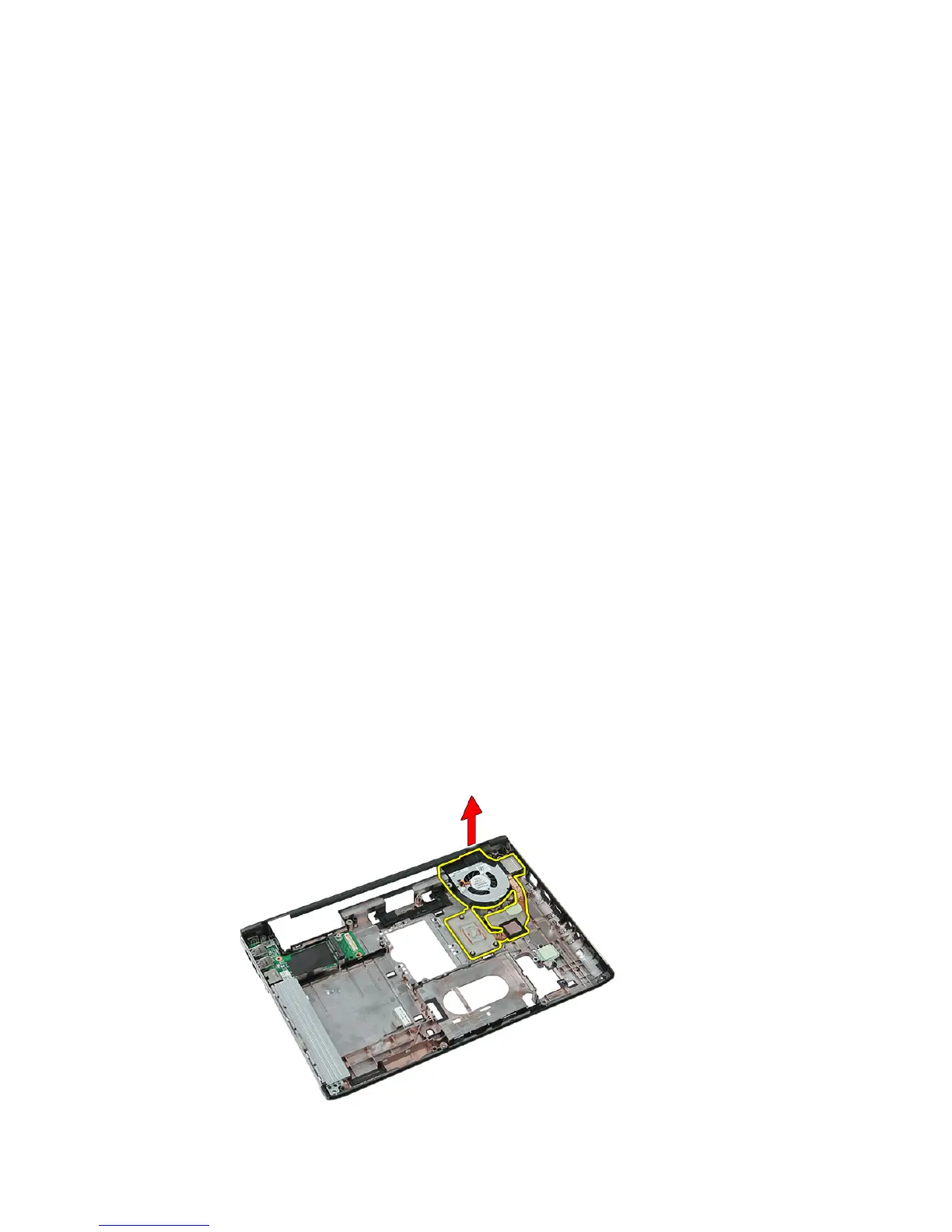

14. Lift the heat sink and fan assembly up and away from the system board.
