Dell Vostro 3350 - Display Assembly; Removing The Display Assembly

21
Display Assembly
Removing The Display Assembly
1. Follow the procedures in Before Working On Your Computer .
2. Remove the
battery .
3. Remove the memory card .
4. Remove the
access panel .
5. Remove the WLAN card .
6. Remove the hard drive .
7. Remove the
keyboard .
8. Remove the WWAN card .
9. Remove the palm rest .

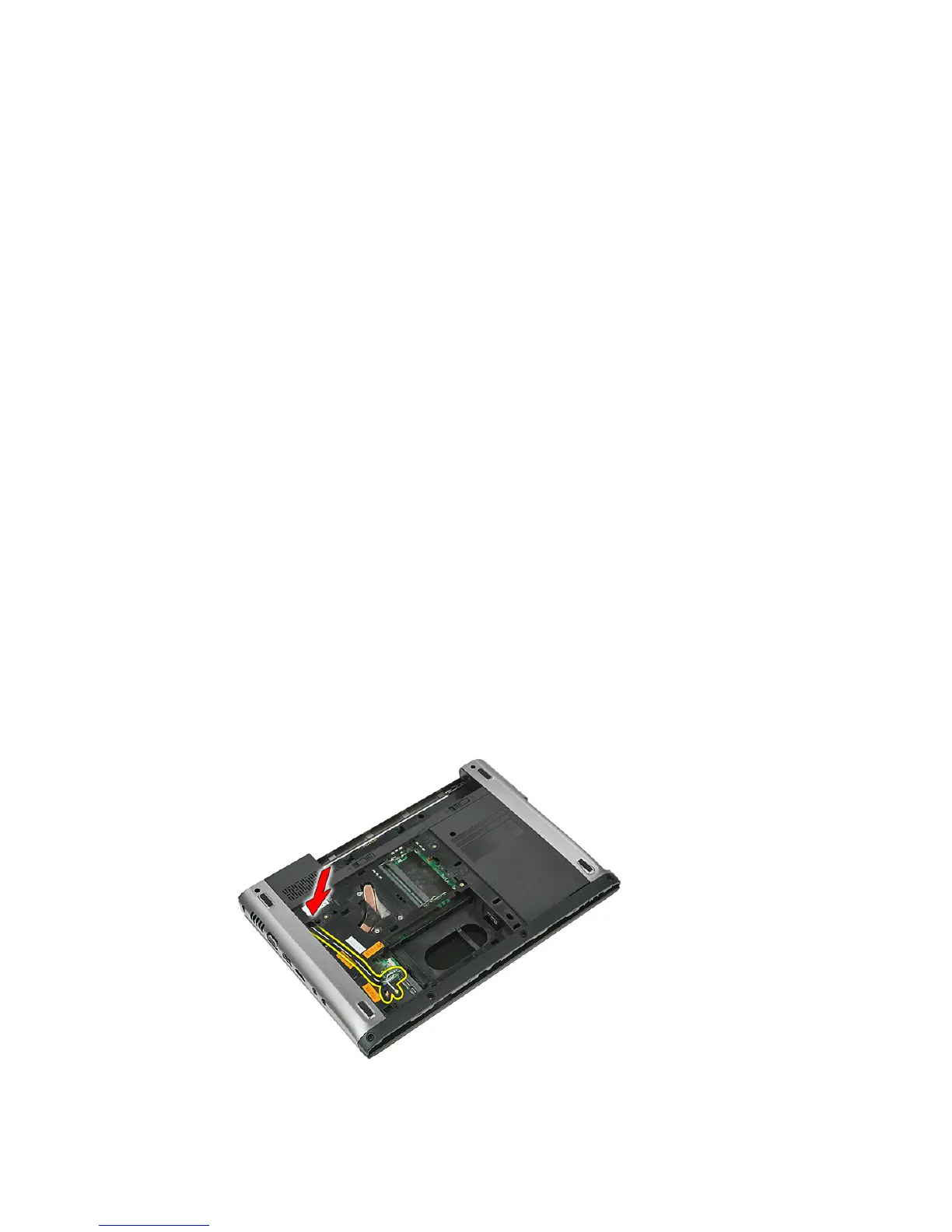

10. Disconnect the antenna cables from the routing channel.
11. Pull out the antenna cables from the routing hole.
69
