Dell Vostro 3350 - Display Panel; Removing The Display Panel

24
Display Panel
Removing The Display Panel
1. Follow the procedures in Before Working On Your Computer .
2. Remove the battery .
3. Remove the memory card .
4. Remove the access panel .
5. Remove the WLAN card .
6. Remove the hard drive .
7. Remove the keyboard .
8. Remove the WWAN card .
9. Remove the
palm rest .
10. Remove the display assembly .
11. Remove the
display bezel .

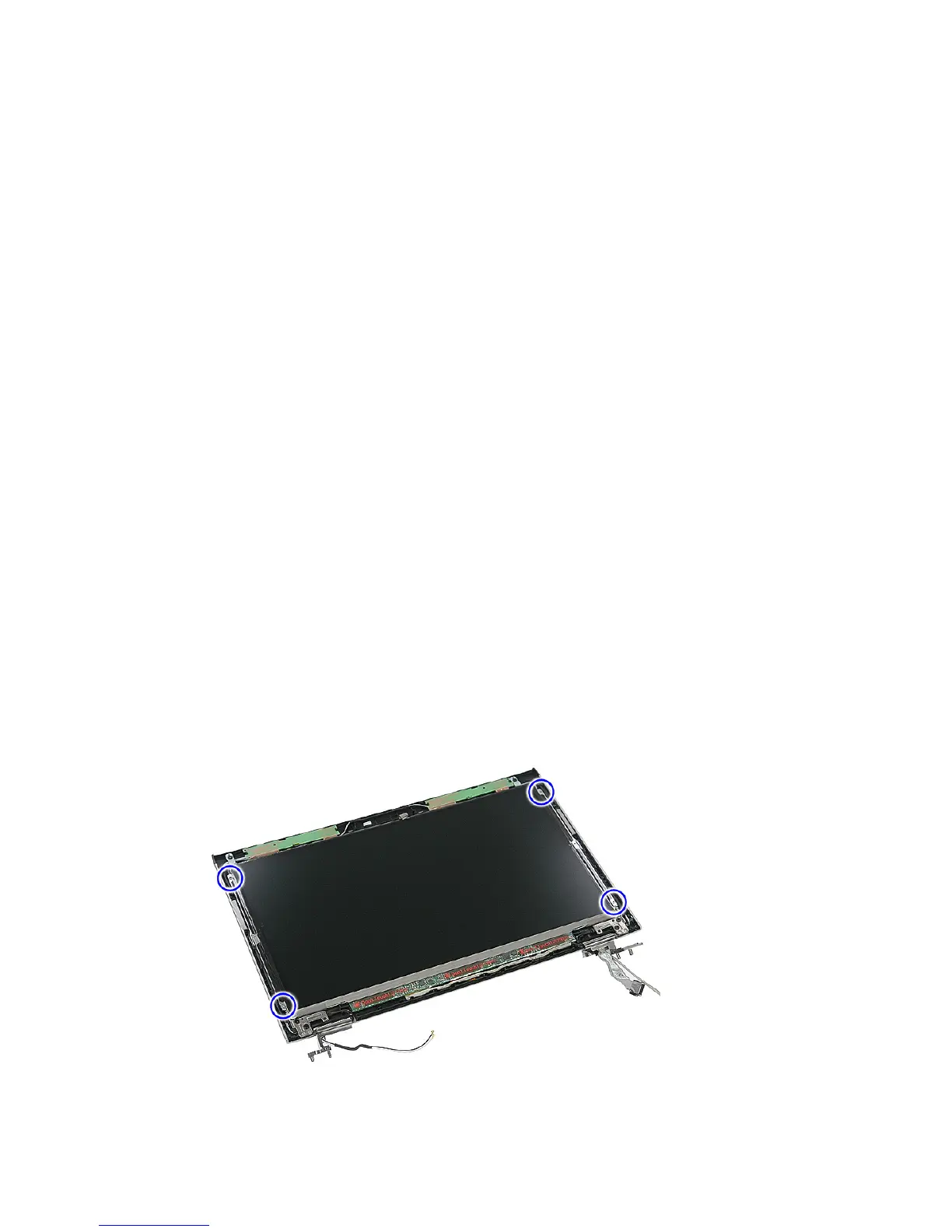

12. Remove the screws that secure the display panel to the display assembly.
13. Lift the display panel from the display assembly.
79
