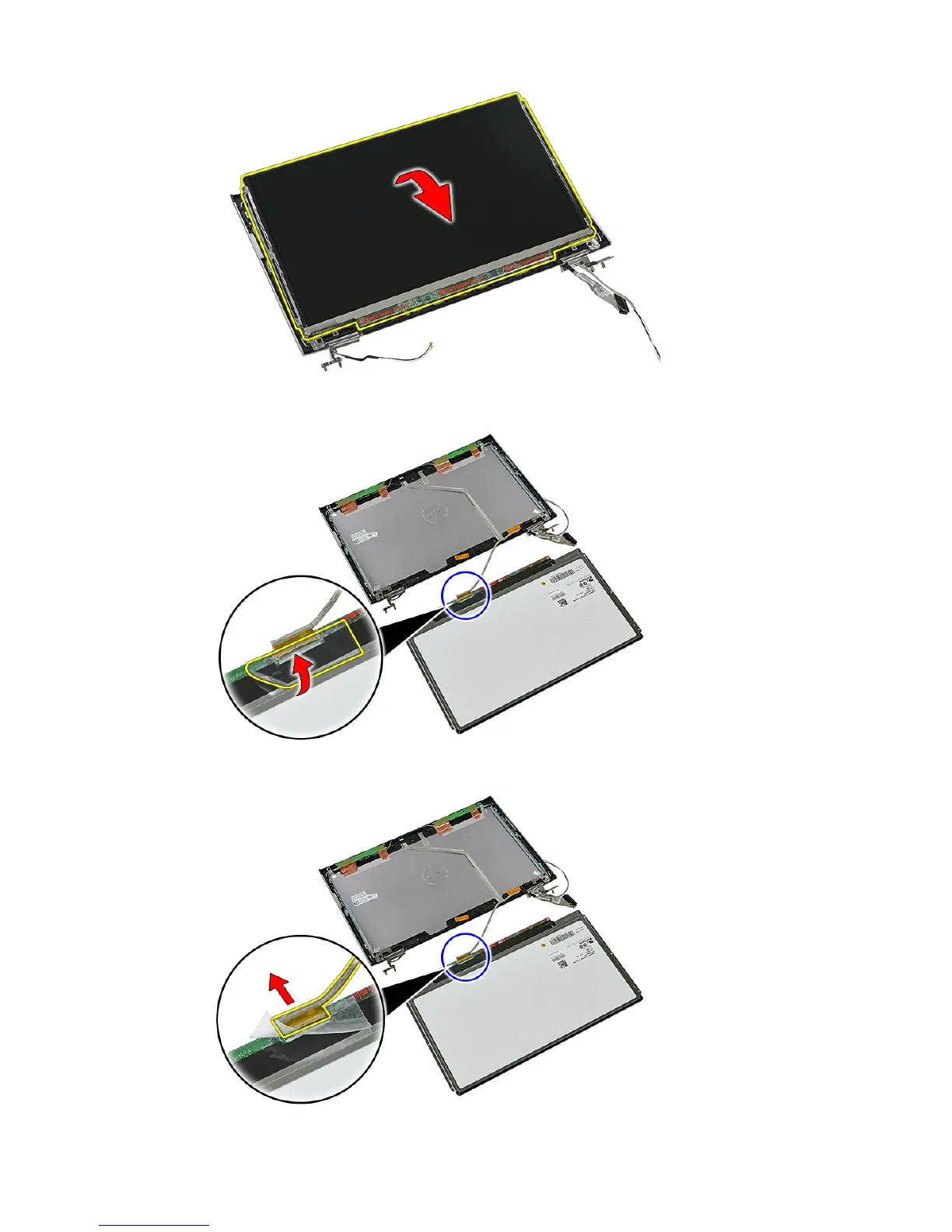

14. Remove the tape that secures the display cable to the display panel.

15. Disconnect the display panel cable from its connector on the panel.

80
