Dell Vostro 3350 - Camera; Removing The Camera

23
Camera
Removing The Camera
1. Follow the procedures in Before Working On Your Computer .
2. Remove the battery .
3. Remove the memory card .
4. Remove the access panel .
5. Remove the WLAN card .
6. Remove the hard drive .
7. Remove the keyboard .
8. Remove the WWAN card .
9. Remove the
palm rest .
10. Remove the display assembly .
11. Remove the
display bezel

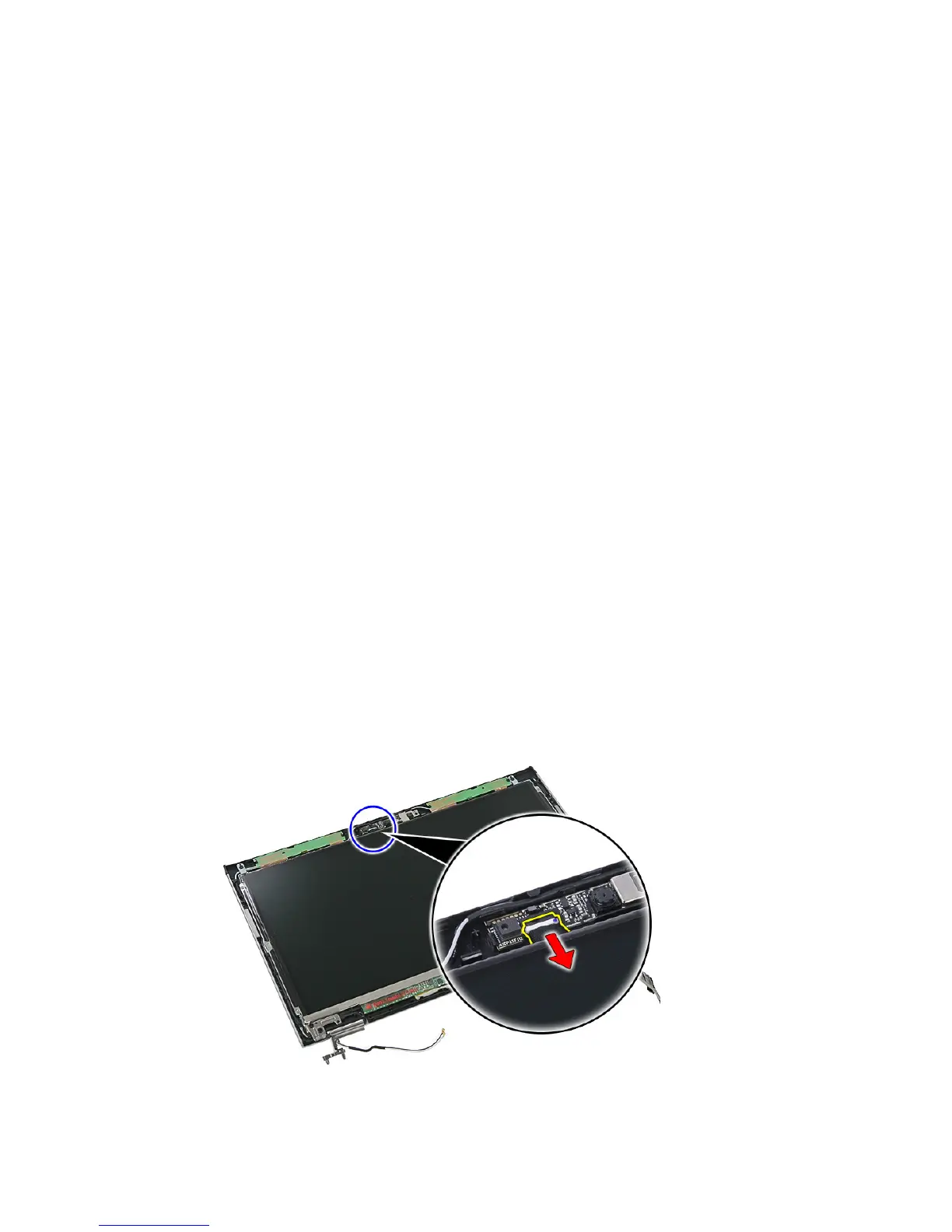

12. Disconnect the camera cable.
13. Peel off tape that secures the camera.
75
