System Board
Removing The System Board
1. Follow the procedures in Before Working On Your Computer .
2. Remove the battery .
3. Remove the memory card .
4. Remove the
access panel .
5. Remove the memory .
6. Remove the
WLAN card .
7. Remove the optical drive .
8. Remove the hard drive .
9. Remove the
keyboard .
10. Remove the WWAN card .
11. Remove the palm rest .
12. Remove the
display assembly .

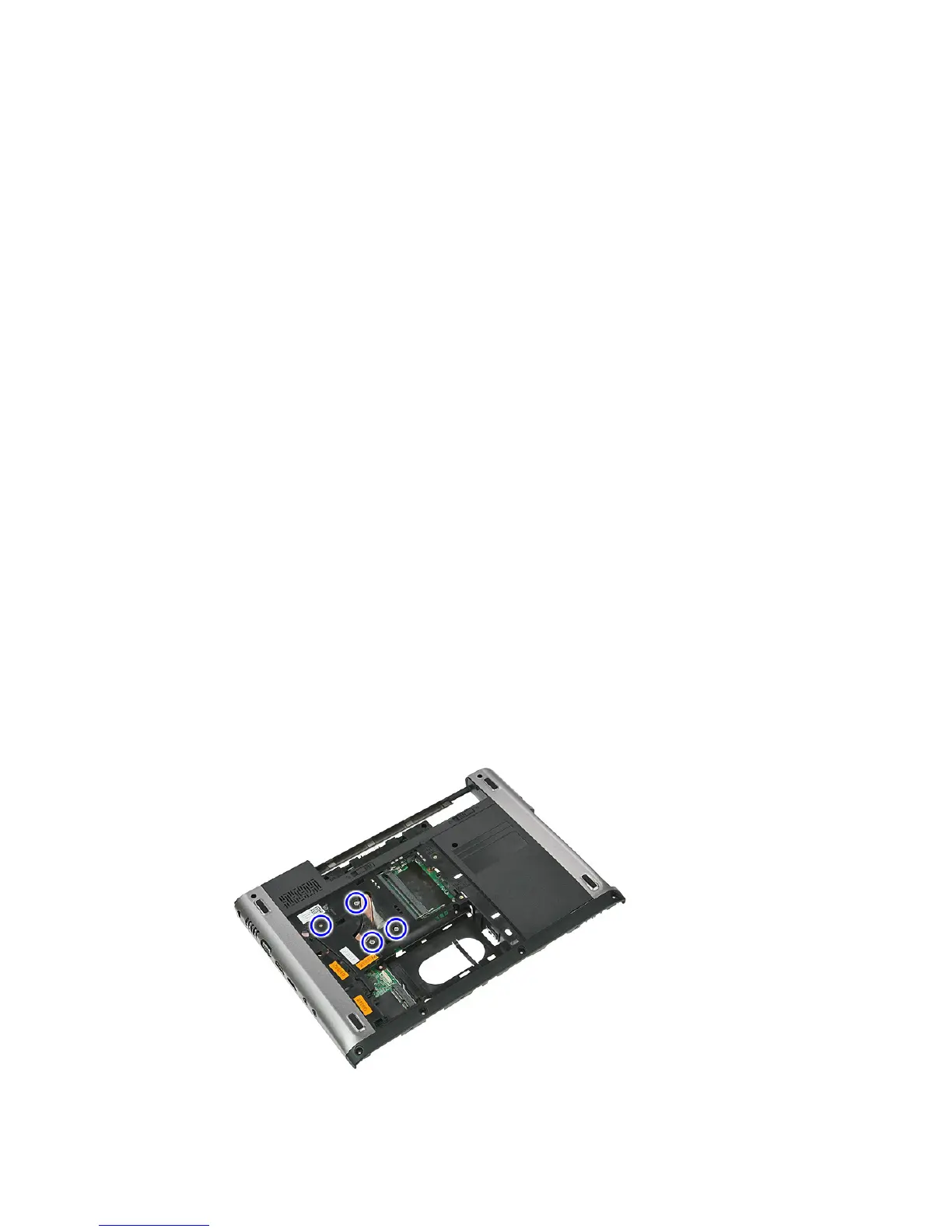

13. Loosen the screws that secures the heat sink to the system board.
14. Disconnect the fan cable that secures the heatsink to the system board.
