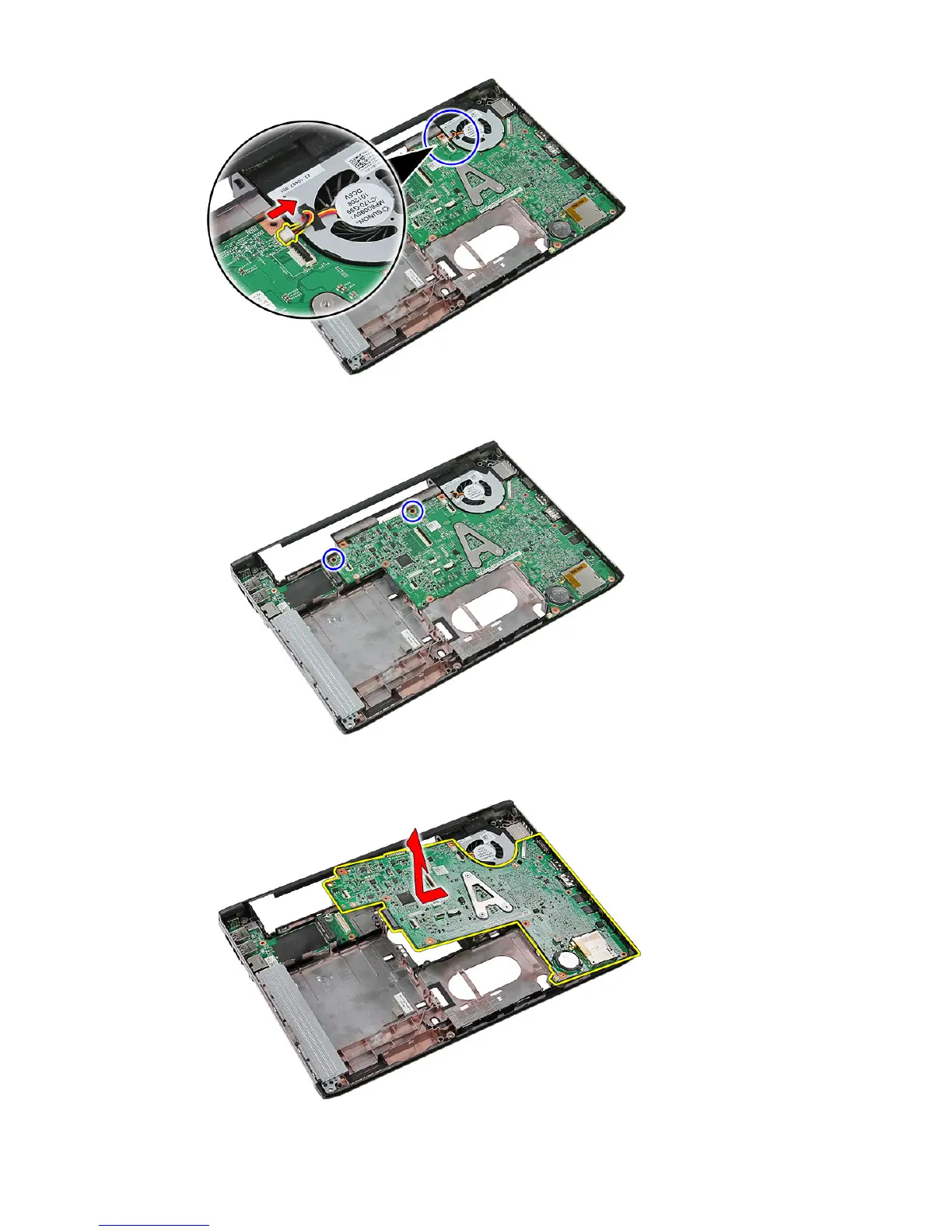

15. Remove the screws that secure the system board to the computer.

16. Lift the system board up and away from the computer.

90
