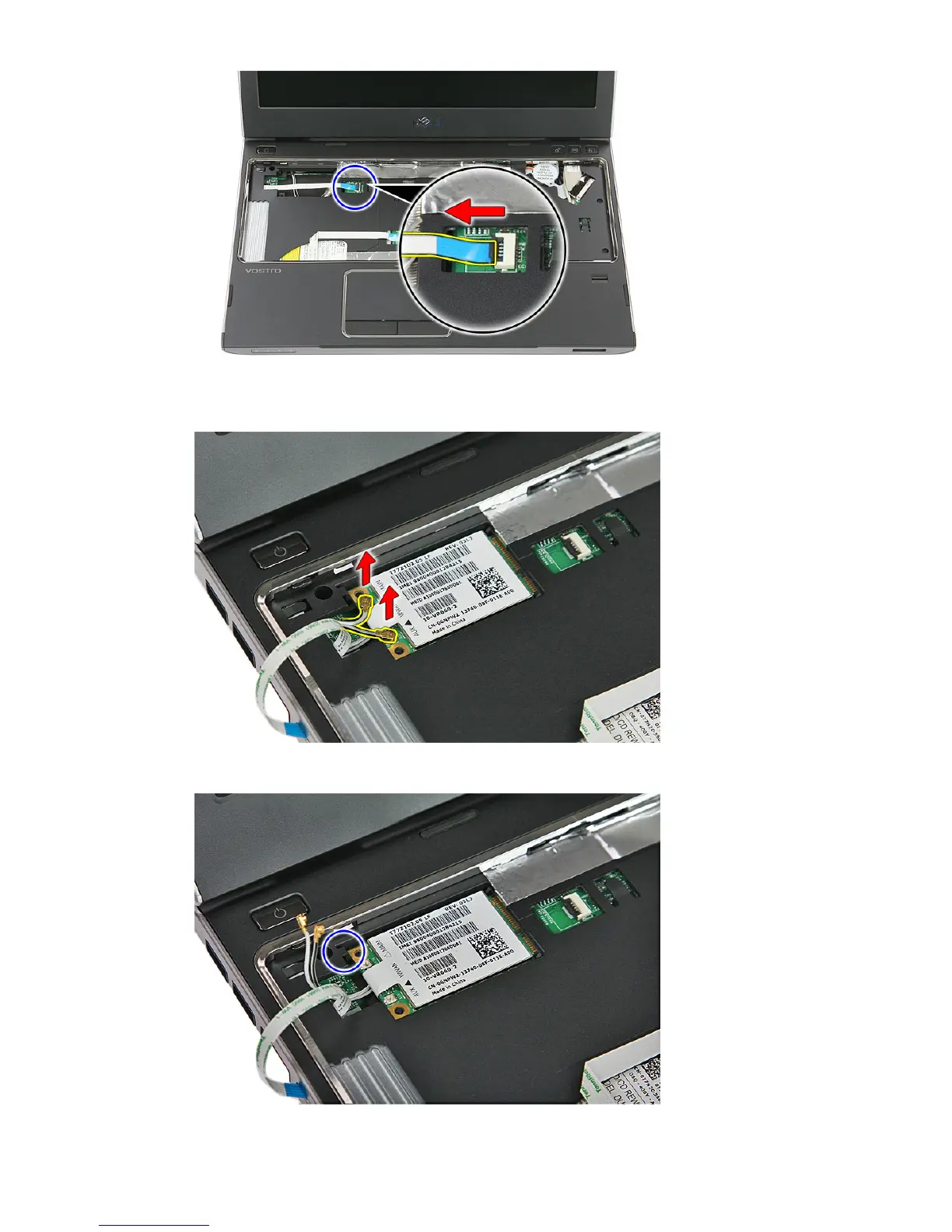

6. Disconnect the antenna cables from the WWAN card.

7. Use a scribe to pry the latch that secures the WWAN card.

34
