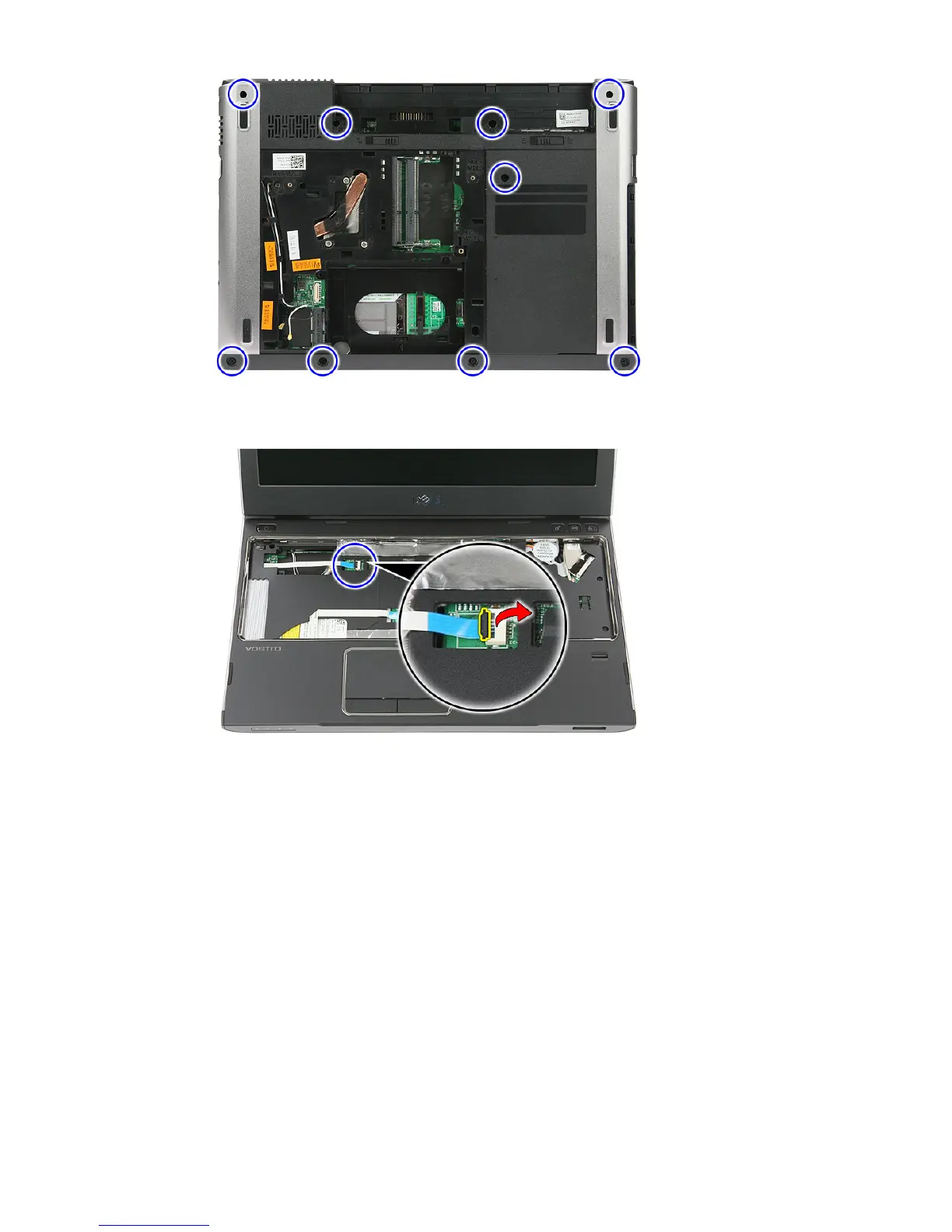

9. Open the clip that secures the power-button board cable to the system

board.

10. Disconnect the power-button board cable from its connector on the system

board.

38

Table of Contents

Notes, Cautions, and Warnings2
- Table of Contents3
1 Working on Your Computer7
- Before Working Inside Your Computer7
- Recommended Tools9
- Turning off Your Computer9
- After Working Inside Your Computer9
2 Battery11
- Removing the Battery11
- Installing the Battery12
3 Memory Card13
- Removing the Memory Card13
- Installing the Memory Card14
4 Subscriber Identity Module (SIM) Card15
- Removing the Phone Subscriber Identity Module (SIM)15
- Installing the Phone Subscriber Identity Module (SIM)16
5 Access Panel17
- Removing the Access Panel17
- Installing the Access Panel18
6 Memory19
- Removing the Memory Module19
- Installing the Memory Module20
7 Optical Drive21
- Removing the Optical Drive21
- Installing the Optical Drive22
8 Hard Drive23
- Removing the Hard Drive23
- Installing the Hard Drive26
9 Wireless Local Area Network (WLAN) Card27
- Removing Wireless Local Area Network (WLAN) Card27
- Installing the Wireless Local Area Network (WLAN) Card28
10 Keyboard29
- Removing the Keyboard29
- Installing the Keyboard31
11 Wireless Wide Area Network (WWAN) Card33
- Removing the Wireless Wide Area Network (WWAN) Card33
- Installing the Wireless Wide Area Network (WWAN) Card35
12 Palm Rest37
- Removing the Palm Rest37
- Installing the Palm Rest44
13 Speaker45
- Removing the Speaker45
- Installing the Speaker46
14 Fingerprint Reader49
- Removing the Fingerprint Reader49
- Installing the Fingerprint Reader51
15 LED Board53
- Removing the LED Board53
- Installing the LED Board54
16 Power-Button Board55
- Removing the Power-Button Board55
- Installing the Power-Button Board56
17 Quick Launch Button Board57
- Removing the Quick Launch Button Board57
- Installing the Quick Launch Button Board58
18 Coin-Cell Battery61
- Removing the Coin-Cell Battery61
- Installing the Coin-Cell Battery61
19 Heat Sink63
- Removing the Heat Sink63
- Installing the Heat Sink64
20 Processor65
- Removing the Processor65
- Installing the Processor66
21 Display Assembly69
- Removing the Display Assembly69
- Installing the Display Assembly71
22 Display Bezel73
- Removing the Display Bezel73
- Installing the Display Bezel74
23 Camera75
- Removing the Camera75
- Installing the Camera76
24 Display Panel79
- Removing the Display Panel79
- Installing the Display Panel81
25 Display Brackets and Hinges83
- Removing Display Brackets and Hinges83
- Installing the Display Brackets and Hinges85
26 Display Cable87
- Removing the Display Cable87
- Installing the Display Cable88
27 System Board89
- Removing the System Board89
- Installing the System Board91
28 Input/Output Board93
- Removing the Input/Output (I/O) Board93
- Installing the Input/Output Board94
29 System Setup95
- System Setup Overview95
- System Setup Enter95
- System Setup Screens96
- System Setup Options97
30 Diagnostics101
- Device Status Lights101
- Battery Status Lights101
- Diagnostic Beep Codes101
31 Specifications103
32 Contacting Dell113
