Installing the Micro Secure Digital card

Steps

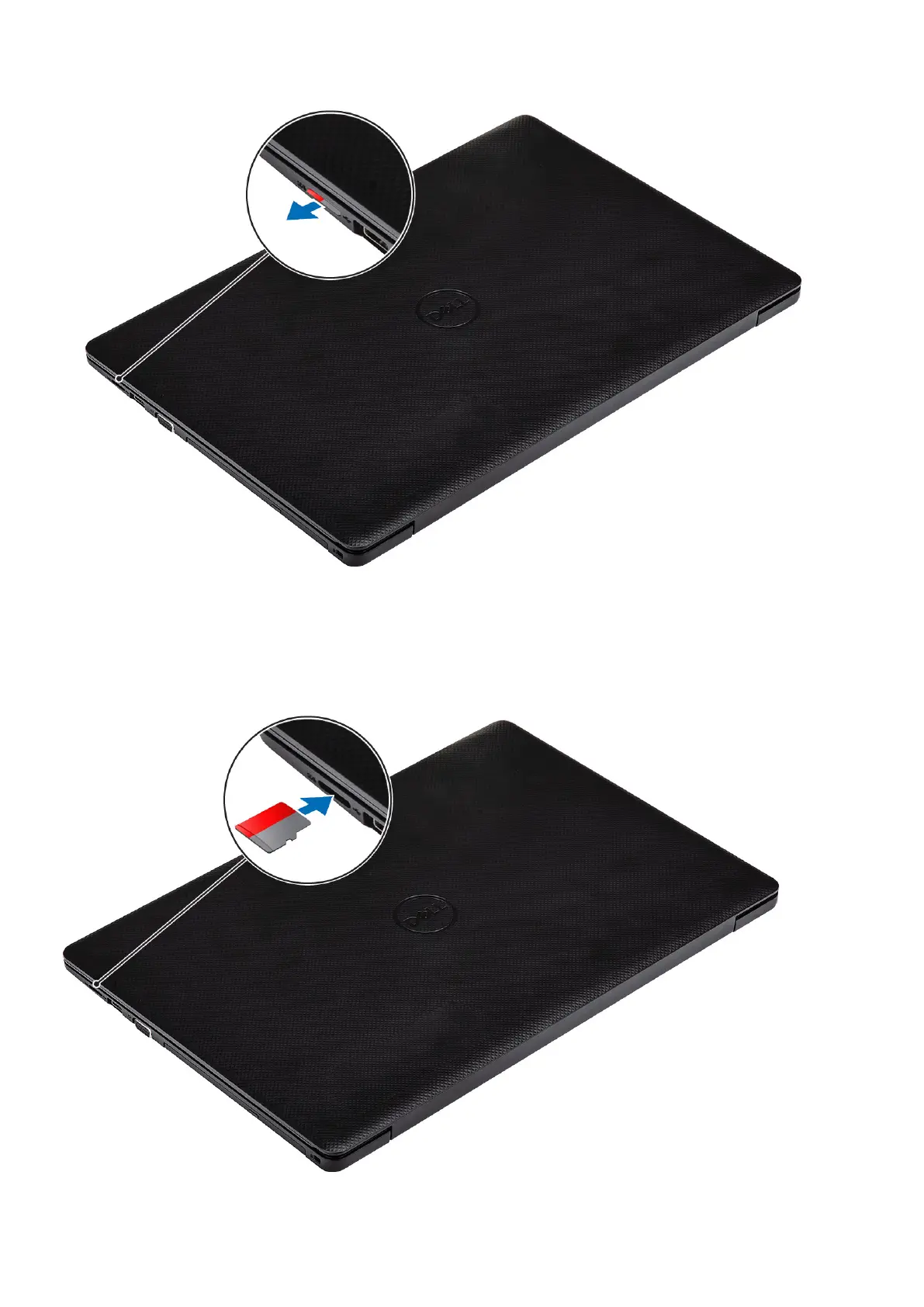

Slide the micro secure digital into the slot until it clicks into place.

Removing and installing components
