4. Lift the power button board, along with the cable off the palmrest and keyboard assembly [4].
Installing the power button board
Steps

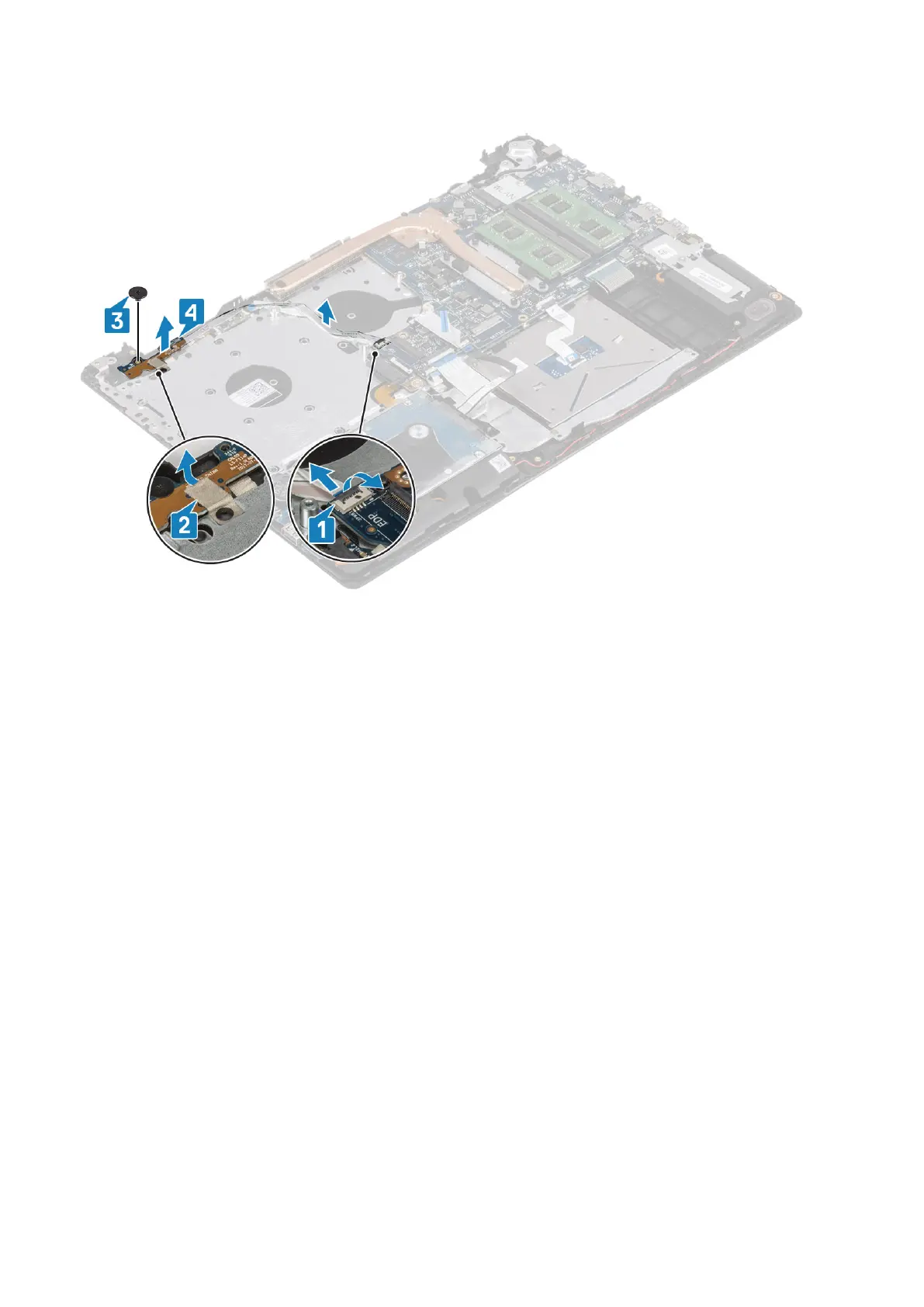

1. Place the power-button board into the slot on the palmrest and keyboard assembly [1].
2. Replace the single (M2x2) screw that secures the power button board to the palmrest and keyboard assembly [2].
3. Adhere the conductive tape to the power button board [3].
4. Slide the power button cable to the system board and close the latch to secure the cable [4].
Removing and installing components
