Dell Vostro 3591 User Manual

5. Remove the battery
6. Remove the WLAN
7. Remove the SSD
8. Remove the hard drive assembly
9. Remove the system fan
10. Remove the heatsink
11. Remove the display assembly
12. Remove the display bezel
13. Remove the display panel
14. Remove the display hinges
Steps

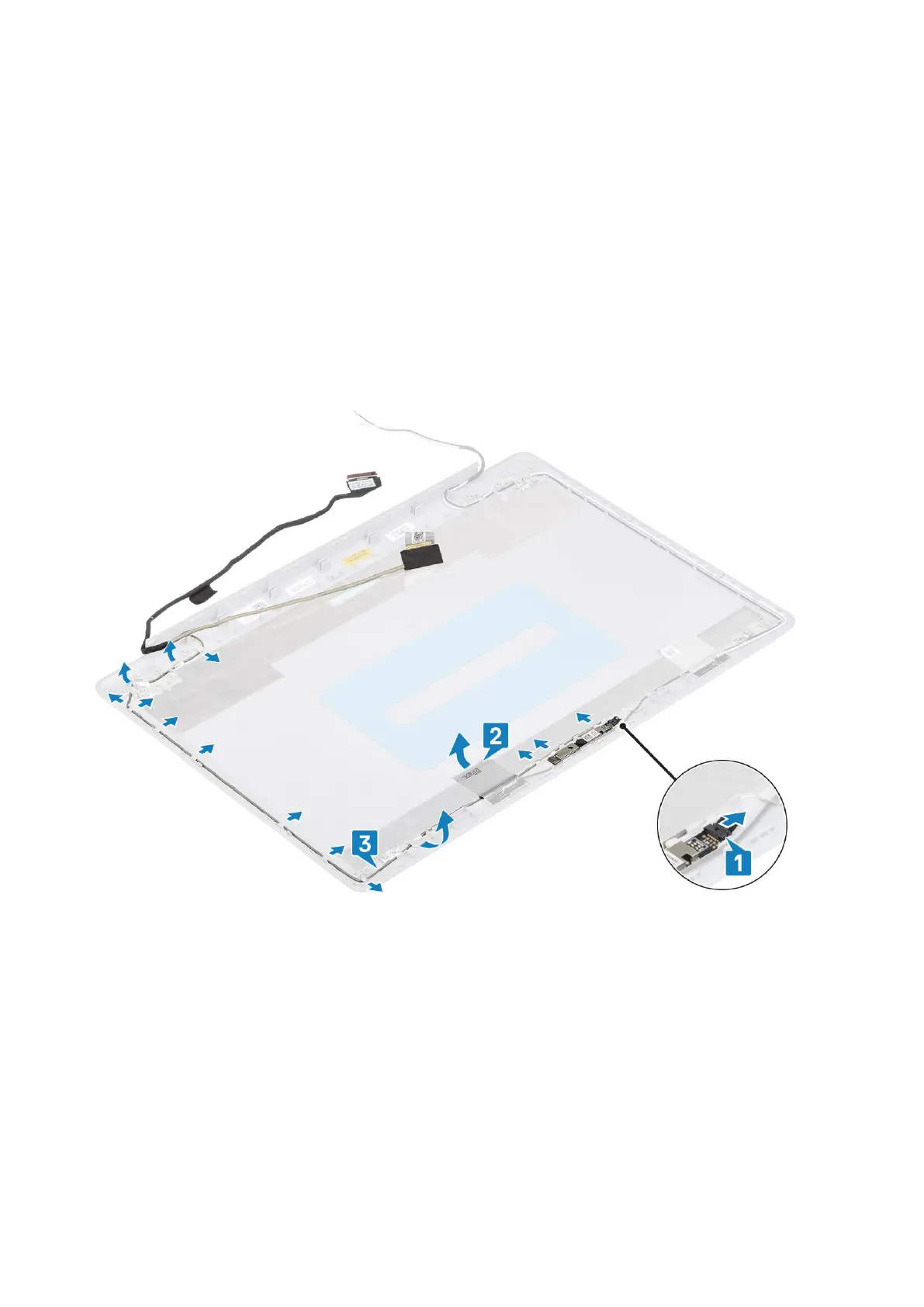

1. Disconnect the camera cable on the display back-cover and antenna assembly [1].
2. Peel the adhesive that secures the camera cable [2].
3. Remove the camera cable and the display cable from the routing guides on the display back-cover and antenna assembly[3]
Installing the display cable
Steps
1. Route the camera cable through the routing guides on the display back-cover and antenna assembly [1].
2. Affix the adhesive that secures the camera cable [2].
3. Connect the camera cable on the display back-cover and antenna assembly [3].
Removing and installing components
71

Dell Vostro 3591 Specifications

General

Processor	Up to 10th Generation Intel® Core™ i7
Display	15.6-inch FHD (1920 x 1080) Anti-Glare LED-Backlit Non-touch Display
RAM	Up to 16GB DDR4
Storage	Up to 1TB HDD or 512GB SSD
Graphics	Intel UHD Graphics
Operating System	Windows 10 Pro
Battery	3-cell 42Whr
Ports	2 x USB 3.1, 1 x USB 2.0, HDMI, SD card reader, Ethernet, Headphone/microphone combo jack
Wireless	802.11ac Wi-Fi
Optical Drive	Optional
Camera	720p
Dimensions	19.9 mm
