Next steps
1. Follow the procedure in after working inside your computer
Optical drive assembly
Removing the optical drive assembly
Prerequisites
1. Follow the procedure in before working inside your computer
2. Remove the micro SD card
Steps

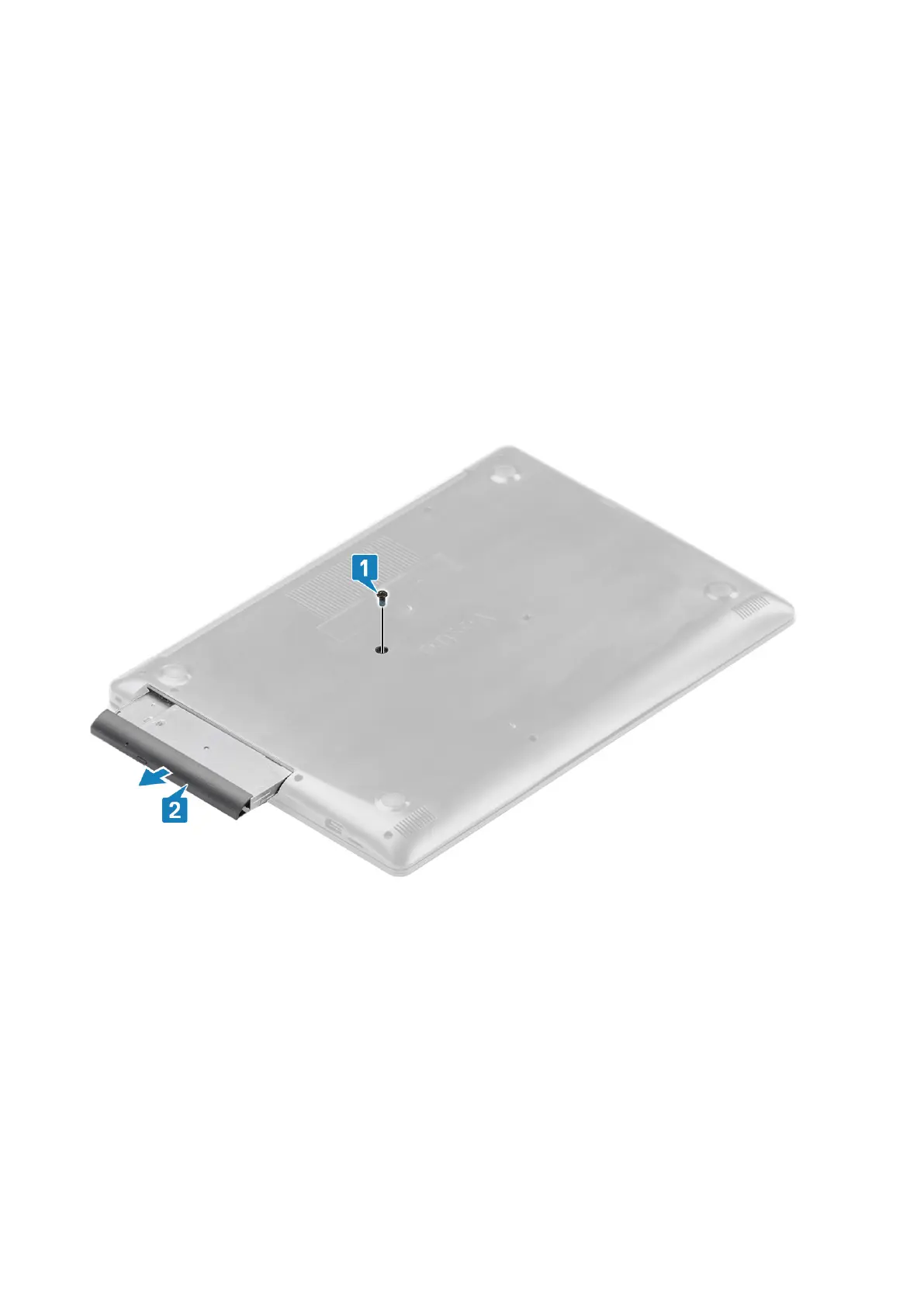

1. Remove the single (M2x4) screw that secures the optical drive to the system [1].
2. Slide the optical drive out of the computer [2].
3. Remove the two (M2x3) screws that secure the optical drive bracket to the optical drive [1].
4. Remove the optical drive bracket from the optical drive [2].
12
Removing and installing components
