Removing and installing components
Recommended tools
The procedures in this document require the following tools:
• Phillips #0 screwdriver
• Phillips #1 screwdriver
• Plastic scribe
NOTE: The #0 screw driver is for screws 0-1 and the #1 screw driver is for screws 2-4.
Screw list
The table provides the list of screws that are used for securing different components.

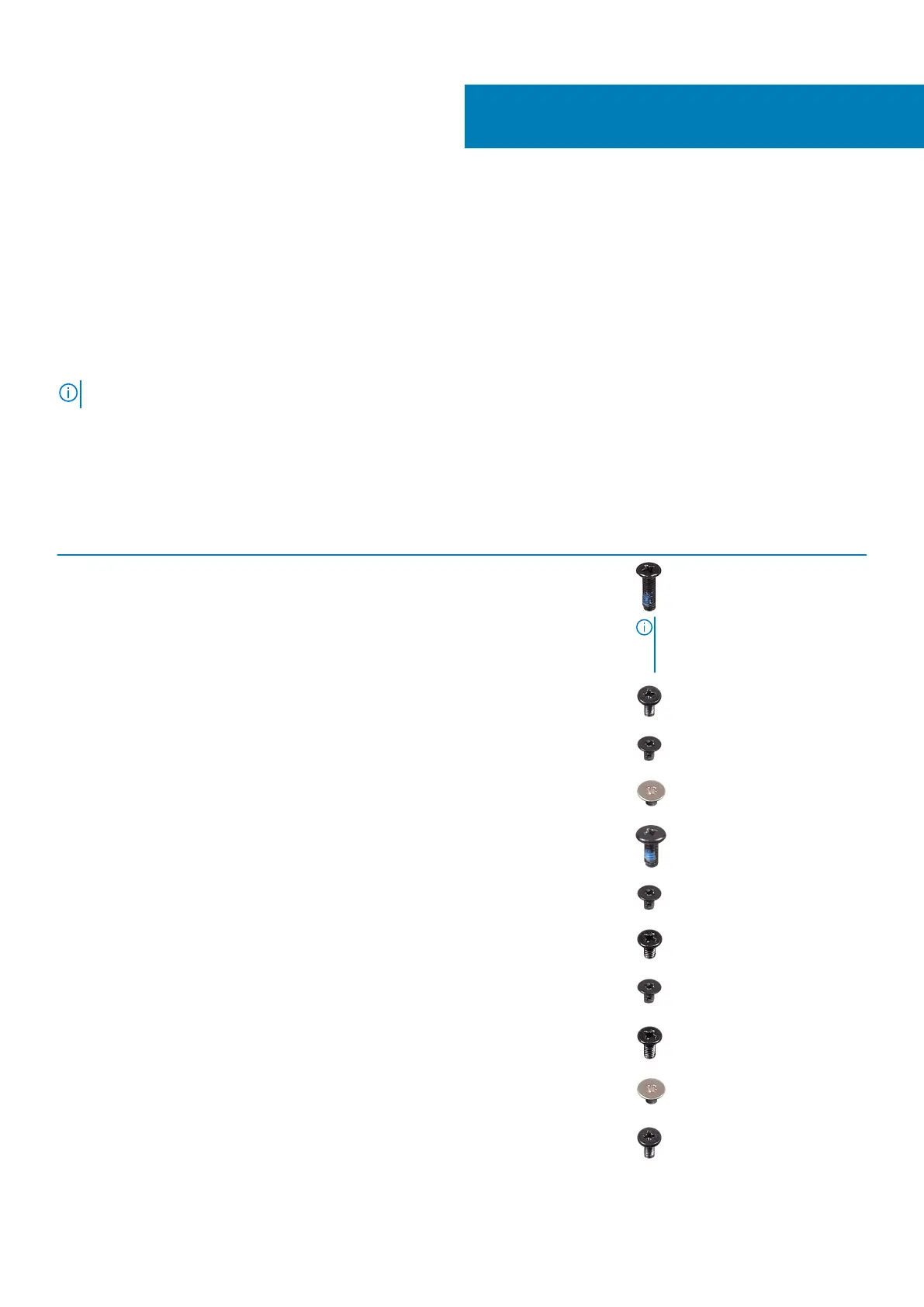

Table 1. Screw list
Component Screw type Quantity Screw image
Base cover
M2.5x7
M2x4
6
1
NOTE: Screw color may vary
depending on the
configuration ordered.
Battery M2x3 4
Display panel M2x2 4
System Fan M2x5 3
Hard-drive assembly M2x3 4
Hard-drive bracket M3x3 4
Heat sink M2x3 3
Hinges
M2.5x2.5
M2x2
8
2
I/O board M2x4 1
2
