Next steps
1. Replace the SSD
2. Replace the battery
3. Replace the base cover
4. Replace the optical drive assembly
5. Replace the SD memory card
6. Follow the procedure in after working inside your computer
IO board
Removing the IO board
Prerequisites
1. Follow the procedure in before working inside your computer
2. Remove the SD memory card
3. Remove the optical drive assembly
4. Remove the base cover
5. Remove the battery
6. Remove the hard drive assembly
Steps

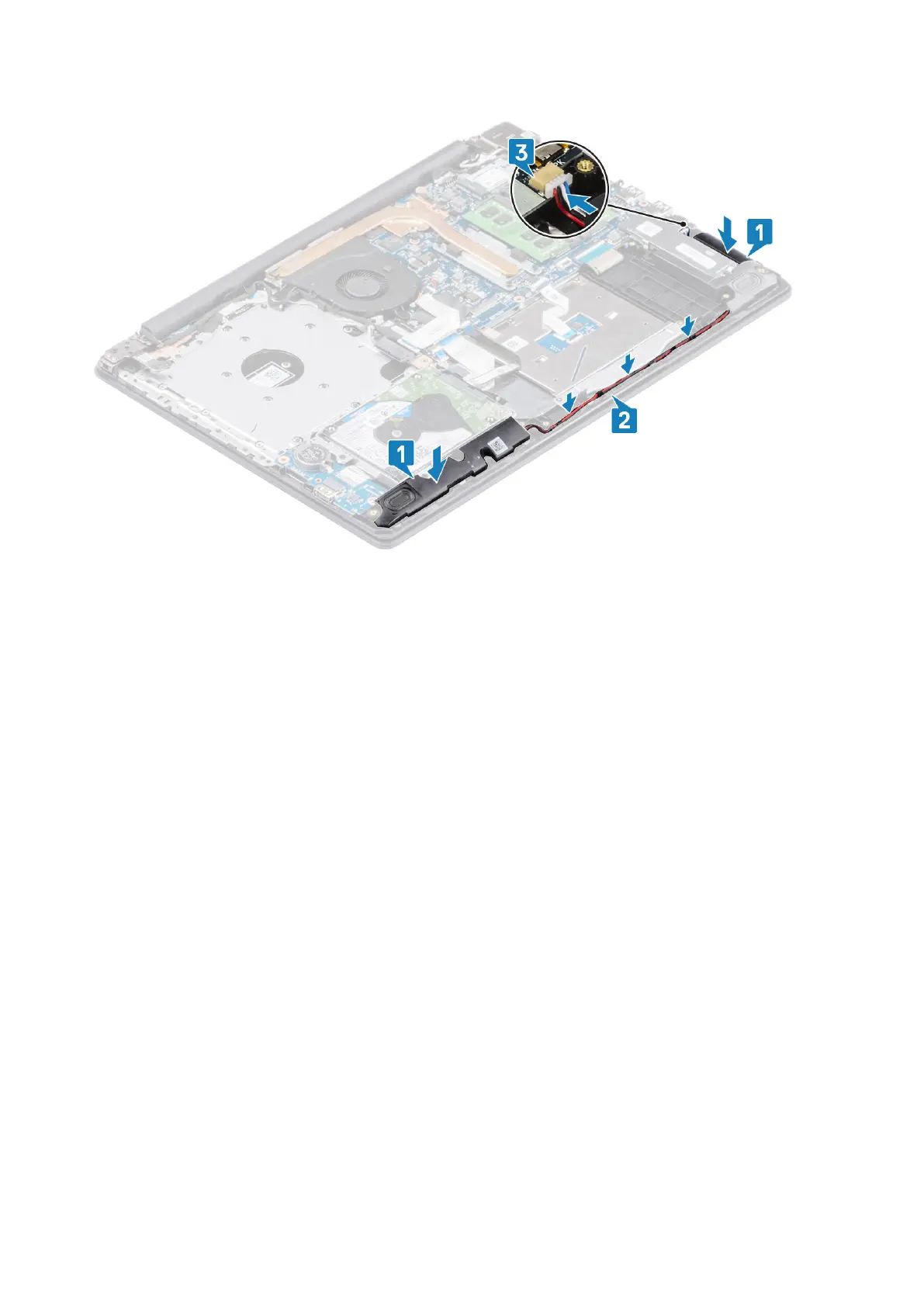

1. Disconnect the VGA cable from the I/O board [1].
2. Open the latch and disconnect the I/O board cable from the system board [2].
Removing and installing components
