Next steps

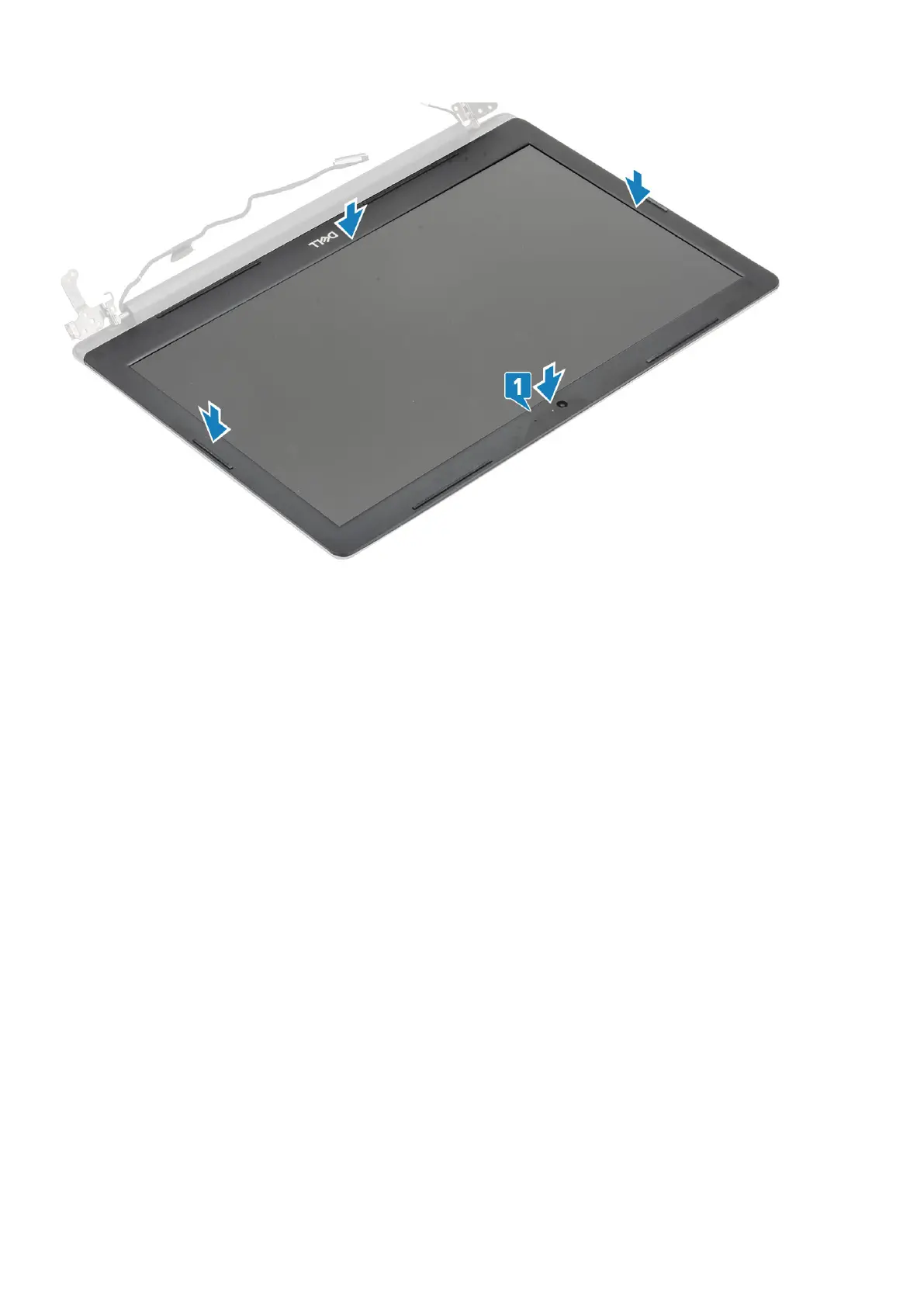

1. Replace the display assembly
2. Replace the hard drive assembly
3. Connect the battery cable to the connector on the system board.
4. Replace the base cover
5. Replace the optical drive assembly
6. Replace the SD memory card
7. Follow the procedure in after working inside your computer
Power-button board
Removing the power button board
Prerequisites
1. Follow the procedure in before working inside your computer
2. Remove the SD memory card
3. Remove the optical drive assembly
4. Remove the base cover
5. Disconnect the battery cable from the connector on the system board.
6. Remove the WLAN
7. Remove the system fan
8. Remove the display assembly
Steps
1. Open the latch and disconnect the power button board cable from the system [1].
2. Peel the conductive tape off the power button board [2].
3. Remove the single (M2x2) screw that secures the power button board to the palmrest and keyboard assembly [3].
54
Removing and installing components
