Steps

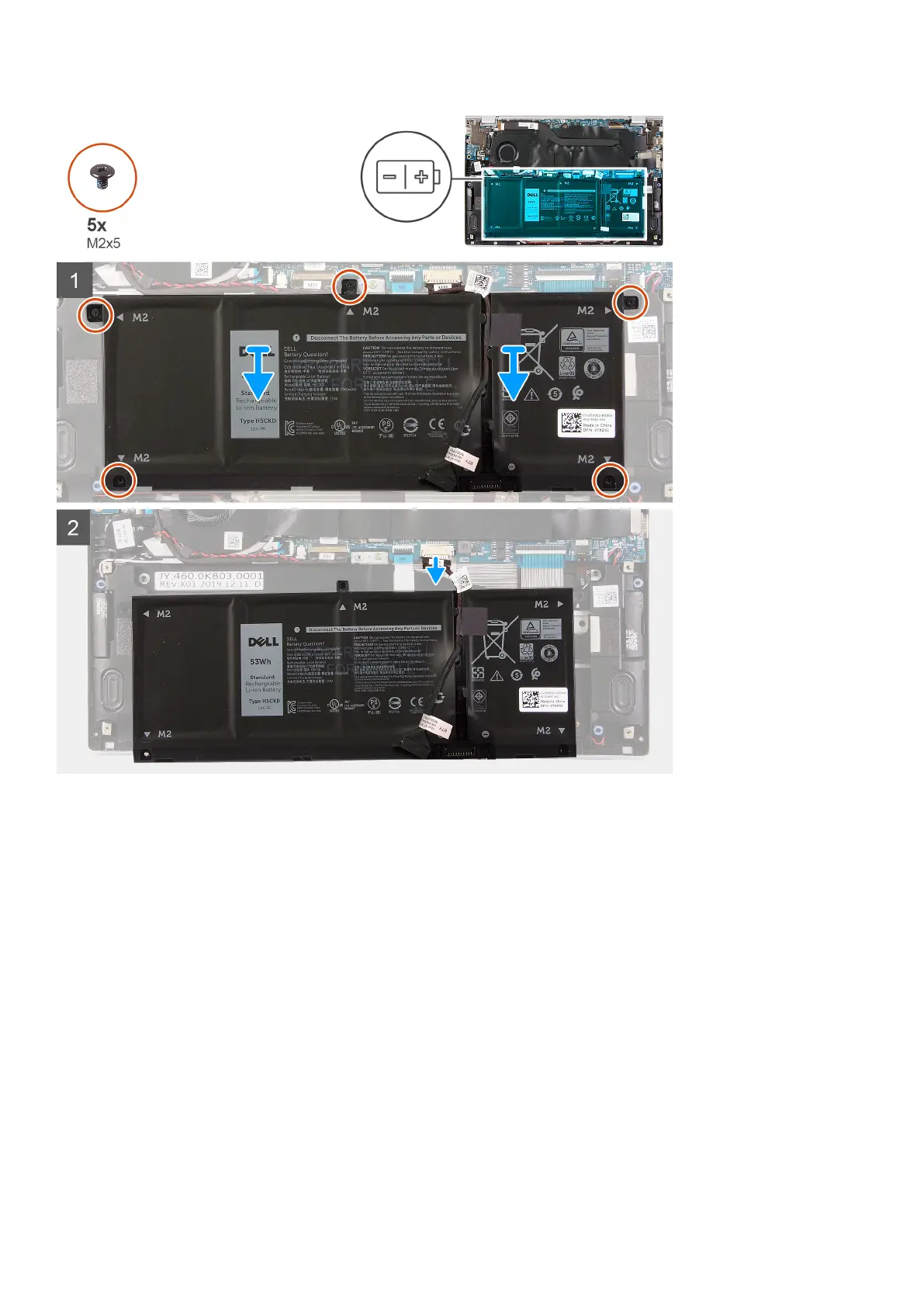

1. Remove the five screws (M2x5) that secure the battery to the palm-rest and keyboard assembly.
2. Lift the battery off the palm-rest and keyboard assembly.
3. Disconnect the battery cable from the system board, if applicable.
Installing the 4-cell battery
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following image indicates the location of the battery and provides a visual representation of the installation procedure.
16
Disassembly and reassembly
