Steps

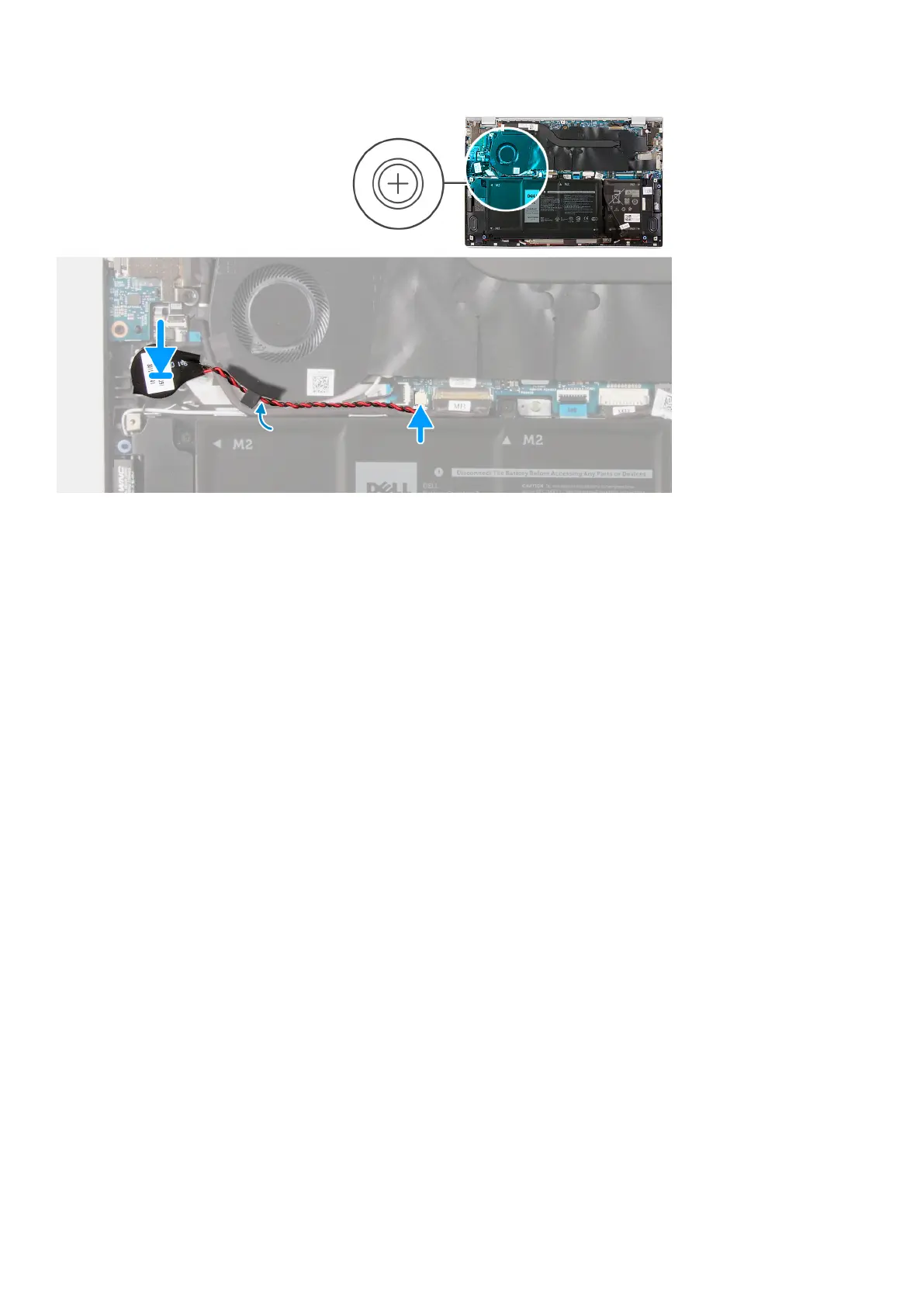

1. Adhere the coin-cell battery to the slot on the palm-rest and keyboard assembly.
2. Route the coin-cell battery cable through the routing guide.
3. Connect the coin-cell battery cable to the system board.
Next steps
1. Install the 4-cell battery.
2. Install the 3-cell battery.
3. Install the base cover.
4. Follow the procedure in After working inside your computer.
Fan
Removing the fan
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
About this task
The following images indicate the location of the fans and provide a visual representation of the removal procedure.
Disassembly and reassembly
23
