Steps

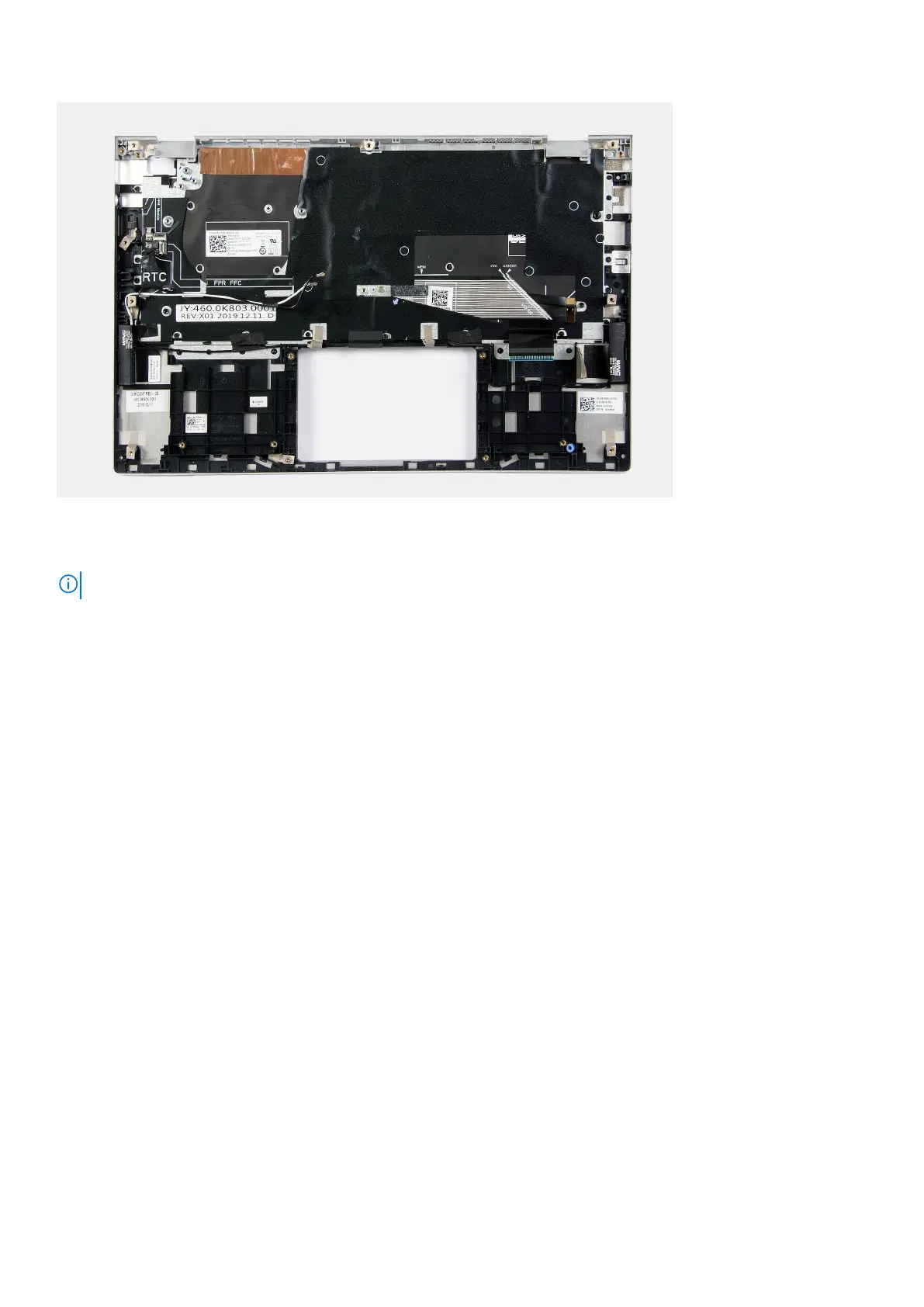

After performing the steps in the pre-requisites, we are left with the palm-rest and keyboard assembly.
NOTE: System board can be removed with heatsink attached.
Installing the palm-rest and keyboard assembly
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following image indicates the palm-rest and keyboard assembly and provides a visual representation of the installation
procedure.
Disassembly and reassembly
45
